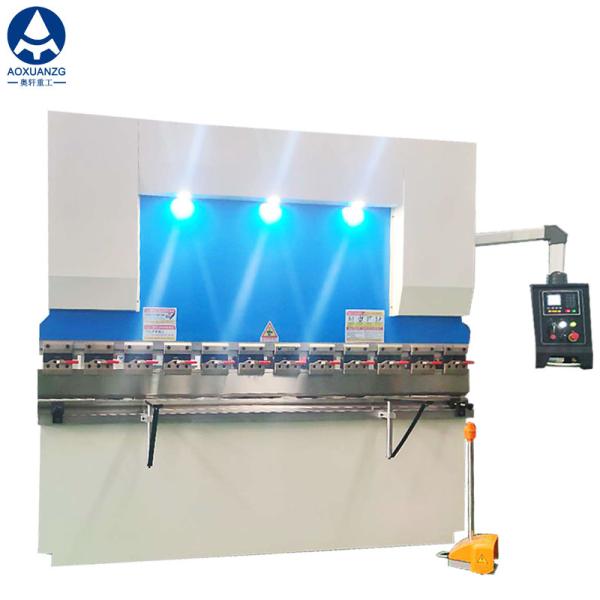

Front Light Hydraulic Press Brakes 63T / 2500MM Blue White

    Buy cheap Front Light Hydraulic Press Brakes 63T / 2500MM Blue White from wholesalers

    Buy cheap Front Light Hydraulic Press Brakes 63T / 2500MM Blue White from wholesalers
    • Buy cheap Front Light Hydraulic Press Brakes 63T / 2500MM Blue White from wholesalers
    • Buy cheap Front Light Hydraulic Press Brakes 63T / 2500MM Blue White from wholesalers
    • Buy cheap Front Light Hydraulic Press Brakes 63T / 2500MM Blue White from wholesalers

    Front Light Hydraulic Press Brakes 63T / 2500MM Blue White

    Ask Lasest Price
    Brand Name : AOXUANZG
    Model Number : WC67K-63T/2500
    Certification : CE
    Price : $8185-$9485/unit
    Payment Terms : L/C, T/T, Western Union, D/P, D/A
    Supply Ability : 500sets/Year
    Delivery Time : 20-30 days
    • Product Details
    • Company Profile

    Front Light Hydraulic Press Brakes 63T / 2500MM Blue White

    63T/2500MM Blue White Press-Brakes Hydraulic Bending Press with Front Light Send To El Salvador
    E21 Controller Press Brake
    1. The X-axis and Y-axis are programmed by the NC E21 system to achieve accurate positioning of the inverter.
    2. WC67K series press brake equipped with standard single-axis backgauge system (X-axis) and single-axis bending angle system (Y-axis), you can choose to add V-axis compensation function, and select the appropriate mold to easily bend the workpiece with complex shapes.
    3. Rear Stopper and upper gliding block are both fitted with coders, for a more accurate display for positions of rear stopper and upper gliding block in coopeartion with digital display system, thus to further increase the operating precision of this machine.


    Front Light Hydraulic Press Brakes 63T / 2500MM Blue WhiteFront Light Hydraulic Press Brakes 63T / 2500MM Blue White

    The standard cofiguration:

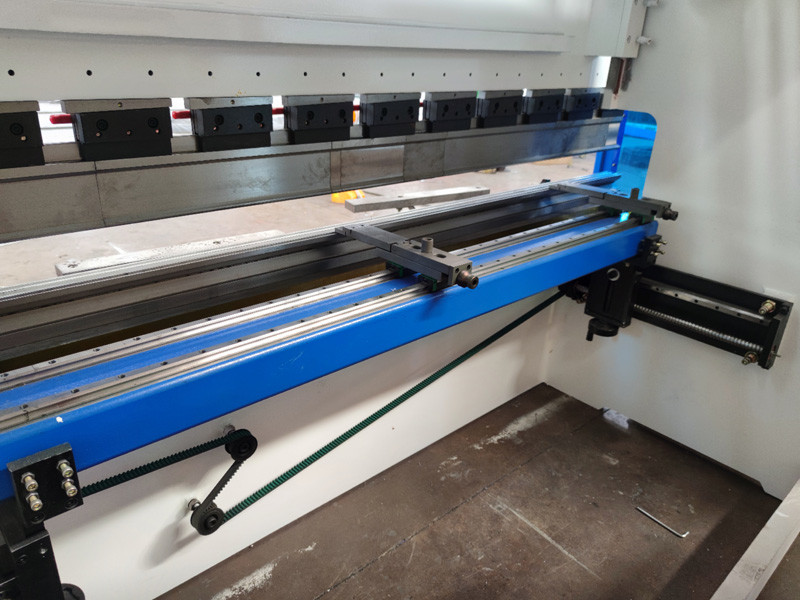

    High precision backguage
    Germany Bosch Rexroth safety valve
    Germany EMB Hose connector
    Schneider Electric Syste
    RV reducer motor working table compensation (Optional)
    Compensation device on workbench (Optional
    Quick mold clamping device


    Front Light Hydraulic Press Brakes 63T / 2500MM Blue White


    Details:

    Front Light Hydraulic Press Brakes 63T / 2500MM Blue White

    Front Light Hydraulic Press Brakes 63T / 2500MM Blue WhiteFront Light Hydraulic Press Brakes 63T / 2500MM Blue White


    Technical Parameters:

    Model

    Nominal pressure

    (KN)

    Worktable Length

    (mm)

    Columns Distance

    (mm)

    ThroatSliderMaxMainDimension
    DepthStrokeOpenmotorL x W x H
    (mm)(mm)heightPower(mm)
    (mm)(KW)
    WC67Y/K-30/1600300160012802008019031700×900×1650
    WC67Y/K-30/2000300200012802008019031700×900×1650
    WC67Y/K-40/2500400250019002801003205.52600×1100×1900
    WC67Y/K-63/2500630250019003501703805.53100×1450×2050
    WC67Y/K-80/3200800320027003501703807.53500×1550×2100
    WC67Y/K-100/32001000320027004002004207.53500×1580×2400
    WC67Y/K-160/3200160032002700400200420113500×1650×2550
    WC67Y/K-200/3200200032002700400200420153500×1680×2550
    WC67Y/K-250/3200250032002700400200420153500×1700×2600
    WC67Y/K-320/3200320032002700400200420223500×1800×2730
    WC67Y/K-400/4000400040003500500320600304300×2450×3500
    WC67Y/K-500/5000500050003900500320600375400×2810×4300
    WC67Y/K-500/6000500060004900500320600376500×2810×4300
    WC67Y/K-500/7000500070004900500320600377500×2810×4900
    WC67Y/K-600/5000600050003900500320600455500×2910×4900
    WC67Y/K-600/6000600060004900500320600456500×2910×5100
    WC67Y/K-600/7000600070005900500320600457500×2910×5200
    WC67Y/K-800/6000800060004900600400600556500×2750 ×5300
    WC67Y/K-800/8000800080006900600400600558500×2750×5900
    WC67Y/K-1000/600010000600049006004006002×376500×2800×5600
    WC67Y/K-1000/800010000800069006004006002×378500×2800×6100
    WC67Y/K-1000/10000100001000080006004006002×3710500×2800×5850
    WC67Y/K-1200/600012000600049006004008002×376500×3100×5850
    WC67Y/K-1200/800012000800069006004008002×378500×3100×7150

    Certifications:


    Front Light Hydraulic Press Brakes 63T / 2500MM Blue White


    Packing and shipping:
    For standard export packaging, the whole body of the machine is wrapped with plastic film, and then packed in wooden cases.There two kinds of ways: LCL is for small press brake, FCL is for big press brake.
    ※ LCL: Covered by plastic films, packed by wooden case.
    ※ FCL: Covered by plastic films, packed by a container.
    ☀ Beforepackaged, the machines will be tested strictly to guarantee the stability and high accuracy.
    ☂ After tested, the machines will be wrapped with plastic sheet ,machine will be securely wired to the container.
    ☂ Each Press Brake with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
    ✈ We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
    Delivery Detail :
    ✈ Shipped in 30 days after payment.


    Front Light Hydraulic Press Brakes 63T / 2500MM Blue White


    Customer & EXPO:
    Front Light Hydraulic Press Brakes 63T / 2500MM Blue White

    FAQ

    1. Are you the manufacture? Can we visit your factory?
    ◆ Of course, you can. We are manufacturer and we are located in Anhui,China. We have our own team for products design. Welcome to visit our factory and check our machine qualtiy, any question will be solved on time.

    2. What's your main product? What is your main foreign market?
    ◆ Our main products are press brake, shears machines, press, cutting machine, locking machine , auto duct line and related products.Our main foreign markets are Asia, North America, Europe, and Africa.

    3. What are the advantages of your machines? And how can I believe the quality of your product?
    ◆ The main configuration is import high quality products, and professional product quality inspection team ensures machine in top-quality, precision and life. For example, Germany Bosch-Rexroth Valve group,Germany Siemens Main Motor,Schneider Electrics system and so on. Once tested as qualified, our machine would be sent out. So The quality of our product is stable and reliable.

    4. Are you able to update the production process Information in time after placing our order?
    ◆ After confirming your order ,we would keep you updated of production details of emails and photos.

    5. Can we be your agent?
    ◆ Yes,we are looking for global agent, and we will help agent improve the market ,and supply all the service like machine
    technical problem or other after-sales problem, meanwhile ,you can get big discount and commission.

    6. Payment terms?
    ◆ T/T, L/C, Western Union, Paypal, Alibaba Secure Payment ect.

    7. Are you provide product metal parts and provide us technical guidance?
    ◆ Wearing parts, Disassembly tool(free) are what we could provide.And we can give you technical guidance.Our technical staff can go abroad to provide you with professional technical guidance.

    8. How long is your warranty?
    ◆ 2 years free warranty, life-long maintenance.

    9. Do you accept customer Logo and customized ?
    ◆ We accept kinds of customized , including logo and machine .
