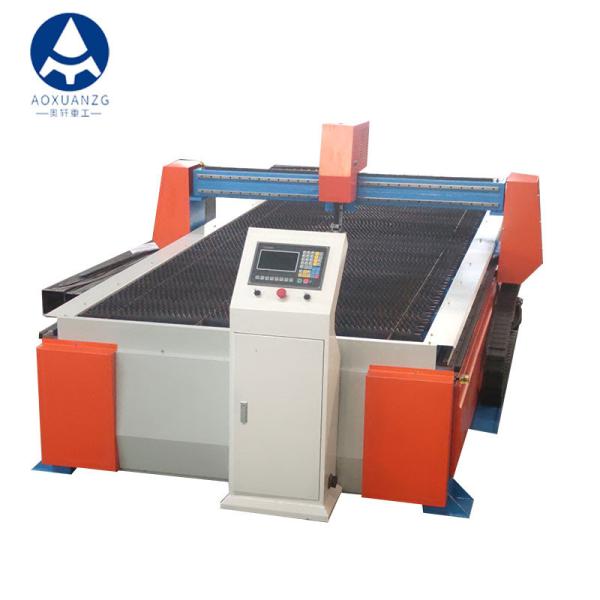

Desk Type Automatic CNC Plasma Cutter 1500x3000 Light Duty

    Buy cheap Desk Type Automatic CNC Plasma Cutter 1500x3000 Light Duty from wholesalers

    Buy cheap Desk Type Automatic CNC Plasma Cutter 1500x3000 Light Duty from wholesalers
    • Buy cheap Desk Type Automatic CNC Plasma Cutter 1500x3000 Light Duty from wholesalers
    • Buy cheap Desk Type Automatic CNC Plasma Cutter 1500x3000 Light Duty from wholesalers

    Desk Type Automatic CNC Plasma Cutter 1500x3000 Light Duty

    Ask Lasest Price
    Brand Name : AOXUANZG
    Model Number : AX-1530
    Certification : CE
    Price : $3999-$6550/unit
    Payment Terms : L/C, T/T, Western Union, D/P, D/A
    Supply Ability : 500sets/Year
    Delivery Time : 20-30 days
    • Product Details
    • Company Profile

    Desk Type Automatic CNC Plasma Cutter 1500x3000 Light Duty

    1500*3000 Light Duty Desk Type Automatic CNC Plasma Cutting Machine Light Duty Desk Type Automatic CNC Plasma Cutting Machine


    Main Features:
    1. Using a dedicated duct expand software automatically generates drawings, export processing program. Operators need to do is select the desired software duct style, enter the desired size, and then export the machining program for cutting it, namely
    convenient, practical and accurate.

    Brief configuration:
    1. Mechanical limit, the electronic device to a set limit, so no worries production.
    2. Bilateral drive, the configuration of high-power motor, fine points of the drive, with great precision mechanical actuation
    system, run faster, higher cutting efficiency.

    Desk Type Automatic CNC Plasma Cutter 1500x3000 Light Duty

    Technical parameters:

    Model1530 100A Plasma cutting machine (high configuration
    X,Y working area1500*3000mm
    Z working area150mm
    Packing dimension2280mm*3900mm*1850mm
    Lathe bedVery thick steel structure
    Machine Power8.5kw
    Working voltage380V three phase 60hz
    Reposition precision0.02mm
    Processing precision0.1mm
    Maximum cutting speed12000mm/min
    Torch Height control modeAutomatic
    Cutting thicknessMax 12mm carbon steel
    Plasma power supplyLGK100A
    Control systemSTARfire
    MotorsStepper motor
    SoftwareStarcam
    Weight1600KG
    Plasma Air PressureMax.0.8Mpa
    Working Temperature-10°C-60°C. Relative Humidity, 0-95%.
    LCD Display Dimension7 Inches




    Details:


    Desk Type Automatic CNC Plasma Cutter 1500x3000 Light DutyDesk Type Automatic CNC Plasma Cutter 1500x3000 Light Duty


    Packing Detail:
    Desk Type Automatic CNC Plasma Cutter 1500x3000 Light Duty

    Our Service
    Pre-sales.
    * Project design, performance introduction, technical agreement, contract signing, packaging * Inquiry and consulting support.
    * Sample testing support.
    In-sales. * We will provide you with the latest progress in the product assembly, packaging and transportation.
    After-sales.
    * We will provide free accessories for the damage to non - human parts. * Training how to install the machine, training how
    to use the machine with video and so on * And our technical staff can go abroad to provide technical guidance.
    Our Company:

    Desk Type Automatic CNC Plasma Cutter 1500x3000 Light Duty



    Customer & EXPO:
    Desk Type Automatic CNC Plasma Cutter 1500x3000 Light Duty

    FAQ:
    1. Are you the manufacture?Can we visit your factory? We are manufacturer and we are located in Anhui,China.And we have our
    own design team for products design. And welcome you visit our factory and check our machine qualtiy on spot,any question will
    be solved on spot at first time.

    2. What's your main product and what is your main foreign market? Our main products are press brake,shears machine,press,cut
    ting machine,locking machine ,auto duct line and related products. Our main foreign market are Asia, North America, Europe, Afr
    ica.

    3. And are you able to update the production process Information in time after placing our order? After confirming your order ,we
    would keep you updated of production details of emails and photos.

    4. Are you provide product metal parts and provide us technical guidance? Wearing parts,Disassembly tool(free) are what we cou
    ld provide.And we can give you technical guidance.Our technical staff can go abroad to provide you with technical guidance.
