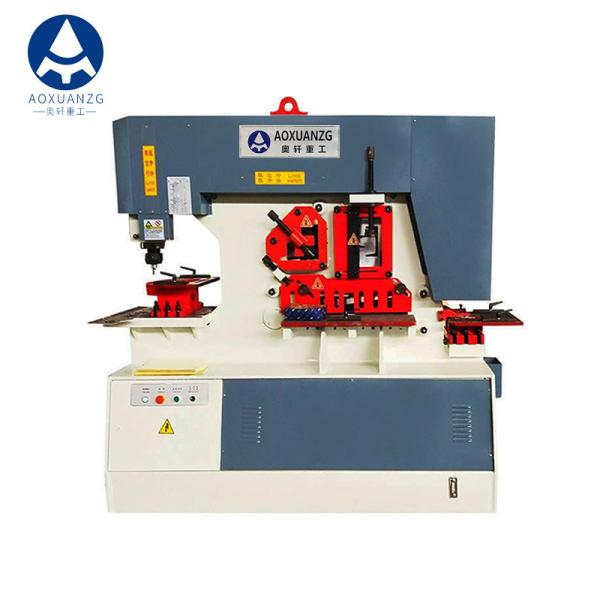

    Equal Angle Steel Cutting Notching Machine 100T Hydraulic 20MM

    Ask Lasest Price
    Brand Name : AOXUANZG
    Model Number : Q35Y-20
    Certification : CE
    Price : $6800-$19800/unit
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 500sets/Year
    Delivery Time : 20-30 days
    • Product Details
    • Company Profile

    Equal Angle Steel Cutting Notching Machine 100T Hydraulic 20MM

    100T Hydraulic 20MM Equal Angel Steel Cutting Notching Machine Price


    Q35Y series hydraulic ironworker adopt hydraulic driving system. Ironworker can cut punch all kinds of holes. Various metal plates, square bar, angle steel, round iron, flat bars, profiled bars, channel steel and joist steel can be cutted, punched and notched on the machines.
    Accessories List
    * A set of hole punching die
    * A set of angle steel blade
    * A set of channel blade
    * A set of shearing plate blade
    * A set of notching blade


    Technical Parameters:
    ModelQ35Y-16Q35Y-20Q35Y-25Q35Y-30Q35Y-40Q35Y-60
    Puching pressure(T)60T100T120T160T250T315T
    Max cutting thickness of steel plates(mm)162025304060
    Material strength (N/mm²)≤450≤450≤450≤450≤450≤450
    Angel of shear (°)
    Flat bar shearing (T×W)(mm)16*250 8*40020*330 10*48025*330 16*60030*335 20*60040*330 20*700508300 30*750
    Max length of slinder strock(mm)80808080100100
    Trips frequency(times/min)11~2012~208~186~166~166~12
    Depth of throat (mm)300355400600600600
    Punch depth(mm)162025283540
    Max.punching diameter(㎜)283335384045
    Motor Power(KW)5.57.511111530
    Dimensions(L× W ×H)(mm)1780*920*17801952*920*19502355*1000*21502840*1200*23302940*1200*23303200*1440*2500


    Equal Angle Steel Cutting Notching Machine 100T Hydraulic 20MM


    Details:

    Shearing Station
    a. Round & square bar shearing: there are multiple holes for a varity of sizes. Adjustable hold down device is convenient for shearing various sizes of round and square bar, channel, joist, etc.
    b. Flat bar shearing: large 15" squraing arm with inlaid scale as standard equipment. Special anti-disorted blade for quality cutting. Lower blade has four usage edges. There is screw allow for gap adjust no shim needed.
    c. Angle iron shearing: the angle iron shear has the ability to cut angle iron at 45 degrees & 90 degrees withe diamond shaped blade. e.g. This gives the operator the ability to make a picture frame corner for perfect welds.
    d. Diamond shaped blade for quality cuts that is minimal material wast. Easily adjustable hold-down device for accurate plate cutting.


    Punching Station
    a. Large viewing window on stripper.
    b. Swing-away design for easy operation.
    c. Available unique style allows for large angle iron punching and large channel punching.
    d. Quick change coupling nut and sleeve for rapid replacement change
    e. Large two pieces gauging table with rules and stop as standard equipment.


    Notching Station
    a. Unique design for unsurpassed cutting of angle and flat bar.
    b. Electrical interlock safety guard and three gauging stops for precise positioning.
    c. with ventilated device for good visibility.
    d. The notching station also has an oversized table with material stops.


    Electronic back gauge device
    a. With 3 supporting feet.
    b. Fine adjustment assures precision cuts.
    c. Fully protected electrical hardness for safety and reliability.
    d. Large contact button for high efficiency productivity.

    Equal Angle Steel Cutting Notching Machine 100T Hydraulic 20MM
    Equal Angle Steel Cutting Notching Machine 100T Hydraulic 20MM

    Packing Detail:

    ☂ Each ironworker with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
    ✈ We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.


    Delivery Detail :
    ☀ Shipped in 25 days after payment.

    Equal Angle Steel Cutting Notching Machine 100T Hydraulic 20MM
    FAQ:

    1. Are you the manufacture?Can we visit your factory?

    We are manufacturer and we are located in Anhui,China.And we have our own design team for products design.

    And welcome you visit our factory and check our machine qualtiy on spot,any question will be solved on spot at first time.


    2.What's your main product and what is your main foreign market?
    Our main products are press brake,shears machine,press,cutting machine,locking machine ,auto duct line and related products.

    Our main foreign market are Asia, North America, Europe, Africa.

    3. what are the advantages of your machines?And how can i believe the quality of your product?

    The main configuration is to import quality products, and Professional product quality inspection team ensure machine in top-quality, precision and life.

    For example,Germany Bosch-Rexroth Valve group,Germany Siemens Main Motor,Schneider Electrics system and so on.

    Once tested as qualified .our machine would be sent out.So The quality of our product is stable and reliable.

    4. And are you able to update the production process Information in time after placing our order?
    After confirming your order ,we would keep you updated of production details of emails and photos.

    5. Can we be your agent?
    Yes,we are looking for Global agent we will help agent improve the market ,and supply all the service like machine technical problem or other after-sales problem, meanwhile ,you can get big discount and commission.

    6. Payment terms?
    T/T, L/C, Western Union, Paypal, Alibaba Secure Payment ect.

    For more information, please contact me (^o^)/~
