Application Industries

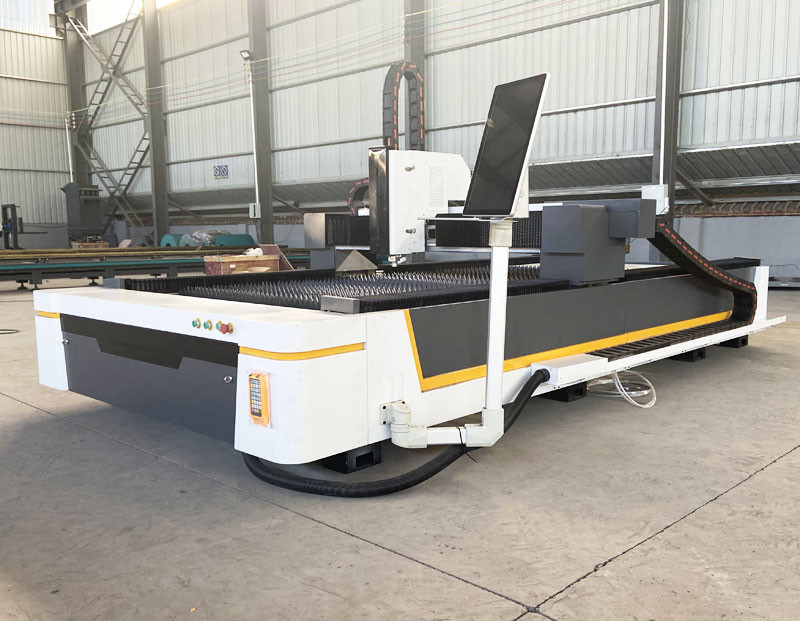

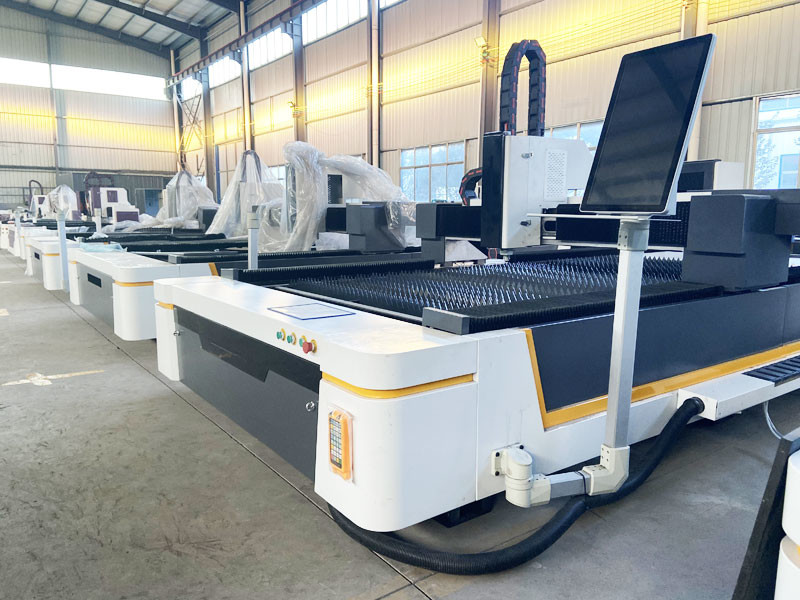

AX3015 is fast speed mild steel cnc fiber laser cutting machine with 3000*1500mm working area, which consist of machine tool,motion parts, electrical equipment control parts, and other assist parts. Via control system to operation three axis motion parts,so it can drive to fiber laser cutting head achieve a stable, accurate, and high speed moving; X and Y axis of aluminium stainless steel sheet cutting machine adopt by imported with original packaging high quality and precision HIWIN linear guide rail, working table adopt by square pipe to welding the overall machine, stress relief annealing treat, the max load-bearing of mesa could get 500 KG, it also has universal ball bearing, machine external set up peripheral clamping device, use full enclosed dust proof device, photoelectric sensor, and other precise positioning parts to ensure accuracy of the transmission.

Features:
1. Users-friendly operating interface
2. USB port and broadband interfaces
3. AC servo motor and drive;
4. Fast-response surface following;
5. Easy operated cutting retract function;
6. Straight line/circular arc interpolation fitting and kerf compensation functions;
7. Programming software Farley CNCKAD with automatic nesting functions;
8. Water chillers ensure machine's precise and stable running
9. CAD/CAM software package with powerful nesting function and edge-shared cutting function;
10. Ventilation dust removal device protect working environment from cutting emissions and metallic vapor;
11. Slag discharging device to facilitate slag discharging.

Technical Parameters:

◆ Support the power range from 500W 1000W 1500W 2000W 3000W ,up to 15kw .
◆ Laser generator can be selected,you can choose RAYCUS, IPG,MAX,JPT,NLIGHT ,Reci ,ect.
◆ Laser Cutting head can support RAYTOOLS,AU3TECH,WSX,PRECITEC.
◆ Reducer you can choose XINBAO ,MOTOVARIO
◆ Servo motor and driver you can choose FUJI/YASKAWA
◆ Working area you can choose 3015,4015,4020,6025,8025 or other optional.

Support customization ,you can choose :
1. COVER , more environmentally friendly and easy to clean
2. ROTARY for tube/pipe cutting ,multifunctional cutting
3. EXCHANGE TABLE ,double platform working , improve production efficiency

Reci laser source

OPTIONAL LASER SOURCE
*Different options of famous brand laser source(Reci/Raycus/IPG), We have professional sales and technician who can suggest you the most suitable laser source, depending your target price.
*Stable performance and high cost performance
*The fiber launch is stable, with long service life of nearly 100,000 hours
*It can run continuously 24 hours a day to meet the requirements of industrial continuous production

Integrated design of operating platform, more space saving.

CYPUT CONTROL SYSTEM
*Support AI, DXF, PLT, Gerber, LXD and other graphic data formats, and accept the Cyput Laser Cutting Control System international standard G code generated by MaterCam, Type3, Wentai and other software.
*To conduct automatic optimization when opening/importing DXF and other external files, including: to remove repetitive lines, merger connected lines, remove tiny graphics as well as automatically distinguish inside and outside models and conduct sorting. The above each function can be defined, as well as be carried out manually. To support common editing and typesetting functions, including: zooming in and zooming out, translation, mirror, rotation, alignment, copying, combination and so on.
*To use the easiest way to set the lead, slotted compensation, micro connection, bridge-connection, lead inside or outside, lead seal without gap and so on.

Body lighting design, strong sense of science and technology, customized, real-time update appearance

JAPAN PANASONIC SERVOMOTOR SERVO DRIVER
Using Japan Panasonic servo motor, servo drive and imported transmission system to ensure the accuracy and reliability of the fiber laser cutting machine.

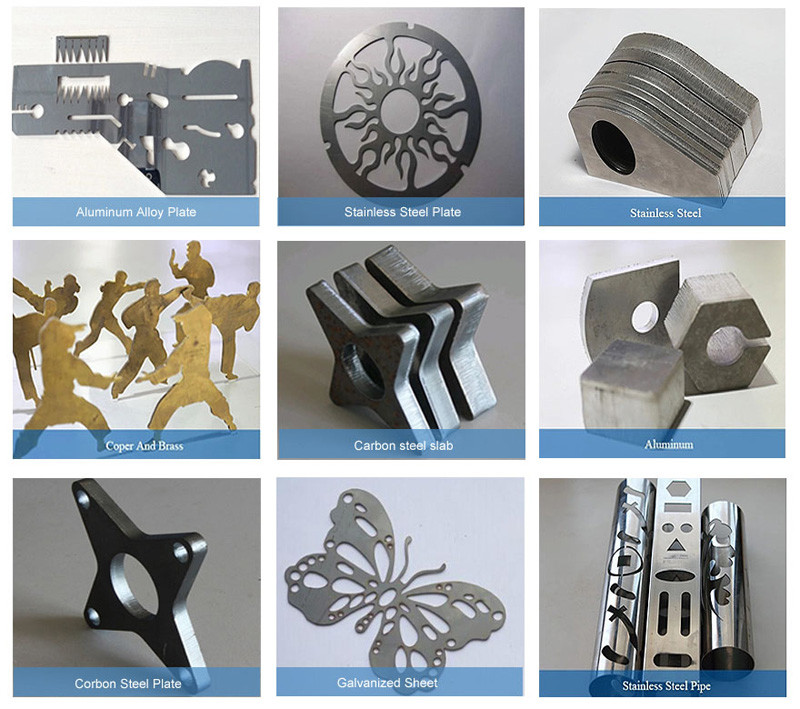

Sample

For more information, please contact me (^o^)/~
