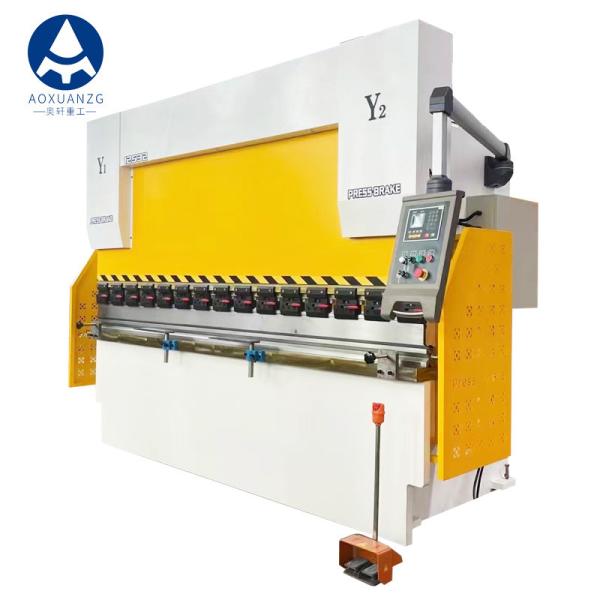

Easy Customized Color Estun E21 Controller Hysraulic Press Bending
Folding Brakes

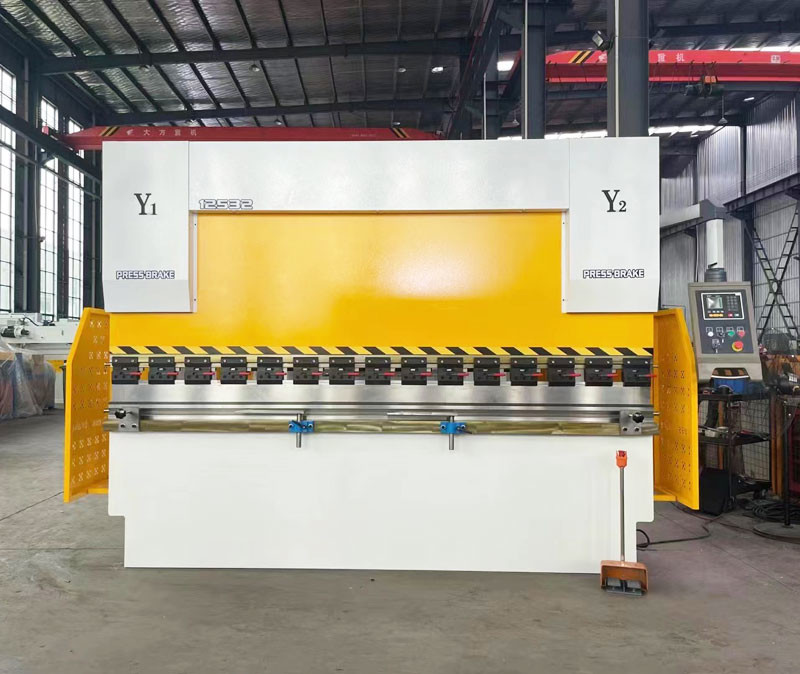

1250KN 3200mm Torsion Bar Press Brake CNC Hydraulic Sheet Metal
Bender Folding Machine
WC67 series bending machine comes standard with single-axis back
gauge system (X axis) and single-axis bending angle system (Y1+Y2
axis), the back gear (R axis) can control up and down movement, and
the finger can move left and right (Z1, Z2 axis) can choose to add
the V axis compensation function, and select the appropriate mold,
easily bend the workpiece with complex shape.
Main Features
1, The body has a streamlined design in the European Union, a heat
treatment process processing frame, a high-rigidity worktable, and
optional mechanical compensation devices to achieve precise
bending.
2, The hydraulic proportional valve synchronous control and CT15
control system programmable logic controller ensure precise
repeatability and ease of use.
3, The integrated hydraulic system (Bosch Rexroth, Germany) can
switch between fast automatic and slow bending.
The X axis and Y axis are programmed by the controller and
controlled by the servo motor to achieve precise positioning.
4, Advanced frequency conversion hydraulic control technology makes
the operation more stable and reliable.
5, The laser protection device ensures the safety during fast
operation.
Details:
Technical Parameters:
| Model | Nominal pressure (KN) | Worktable Length (mm) | Columns Distance (mm) | Throat | Slider | Max | Main | Dimension |
| Depth | Stroke | Open | motor | L x W x H |
| (mm) | (mm) | height | Power | (mm) |
| | (mm) | (KW) | |
| WC67Y/K-30/1600 | 300 | 1600 | 1280 | 200 | 80 | 190 | 3 | 1700×900×1650 |
| WC67Y/K-30/2000 | 300 | 2000 | 1280 | 200 | 80 | 190 | 3 | 1700×900×1650 |
| WC67Y/K-40/2500 | 400 | 2500 | 1900 | 280 | 100 | 320 | 5.5 | 2600×1100×1900 |
| WC67Y/K-63/2500 | 630 | 2500 | 1900 | 350 | 170 | 380 | 5.5 | 3100×1450×2050 |
| WC67Y/K-80/3200 | 800 | 3200 | 2700 | 350 | 170 | 380 | 7.5 | 3500×1550×2100 |
| WC67Y/K-100/3200 | 1000 | 3200 | 2700 | 400 | 200 | 420 | 7.5 | 3500×1580×2400 |
| WC67Y/K-160/3200 | 1600 | 3200 | 2700 | 400 | 200 | 420 | 11 | 3500×1650×2550 |
| WC67Y/K-200/3200 | 2000 | 3200 | 2700 | 400 | 200 | 420 | 15 | 3500×1680×2550 |
| WC67Y/K-250/3200 | 2500 | 3200 | 2700 | 400 | 200 | 420 | 15 | 3500×1700×2600 |
| WC67Y/K-320/3200 | 3200 | 3200 | 2700 | 400 | 200 | 420 | 22 | 3500×1800×2730 |
| WC67Y/K-400/4000 | 4000 | 4000 | 3500 | 500 | 320 | 600 | 30 | 4300×2450×3500 |
| WC67Y/K-500/5000 | 5000 | 5000 | 3900 | 500 | 320 | 600 | 37 | 5400×2810×4300 |
| WC67Y/K-500/6000 | 5000 | 6000 | 4900 | 500 | 320 | 600 | 37 | 6500×2810×4300 |
| WC67Y/K-500/7000 | 5000 | 7000 | 4900 | 500 | 320 | 600 | 37 | 7500×2810×4900 |
| WC67Y/K-600/5000 | 6000 | 5000 | 3900 | 500 | 320 | 600 | 45 | 5500×2910×4900 |
| WC67Y/K-600/6000 | 6000 | 6000 | 4900 | 500 | 320 | 600 | 45 | 6500×2910×5100 |
| WC67Y/K-600/7000 | 6000 | 7000 | 5900 | 500 | 320 | 600 | 45 | 7500×2910×5200 |
| WC67Y/K-800/6000 | 8000 | 6000 | 4900 | 600 | 400 | 600 | 55 | 6500×2750 ×5300 |
| WC67Y/K-800/8000 | 8000 | 8000 | 6900 | 600 | 400 | 600 | 55 | 8500×2750×5900 |
| WC67Y/K-1000/6000 | 10000 | 6000 | 4900 | 600 | 400 | 600 | 2×37 | 6500×2800×5600 |
| WC67Y/K-1000/8000 | 10000 | 8000 | 6900 | 600 | 400 | 600 | 2×37 | 8500×2800×6100 |
| WC67Y/K-1000/10000 | 10000 | 10000 | 8000 | 600 | 400 | 600 | 2×37 | 10500×2800×5850 |
| WC67Y/K-1200/6000 | 12000 | 6000 | 4900 | 600 | 400 | 800 | 2×37 | 6500×3100×5850 |
| WC67Y/K-1200/8000 | 12000 | 8000 | 6900 | 600 | 400 | 800 | 2×37 | 8500×3100×7150 |
Packing Detail:
Each Hydraulic Press Brake with plastic film package first, then
placed in a wooden case, wooden case with a foam filling.
We loaded the truck with heavy trucks for loading the cargo to the
harbor terminal.At the dock we pack the goods in containers
and ship them abroad.
Delivery Detail:
Shipped in 30 days after payment
FAQ:
1. Are you the manufacture?Can we visit your factory?
We are manufacturer and we are located in Anhui,China.And we have
our own design team for products design.
And welcome you visit our factory and check our machine qualtiy on
spot,any question will be solved on spot at first time.
2. What's your main product and what is your main foreign market?
Our main products are press brake,shears machine,press,cutting
machine,locking machine ,auto duct line and related products.
Our main foreign market are Asia, North America, Europe, Africa.
3. what are the advantages of your machines?And how can i believe
the quality of your product?
The main configuration is to import quality products, and
Professional product quality inspection team ensure machine in
top-quality, precision and life.
For example,Germany Bosch-Rexroth Valve group,Germany Siemens Main
Motor,Schneider Electrics system and so on.
Once tested as qualified .our machine would be sent out.So The
quality of our product is stable and reliable.
4. And are you able to update the production process Information in
time after placing our order?
After confirming your order ,we would keep you updated of
production details of emails and photos.
5. Can we be your agent?
Yes,we are looking for Global agent we will help agent improve the
market ,and supply all the service like machine technical problem
or other after-sales problem, meanwhile ,you can get big discount
and commission.
6. Payment terms?
T/T, L/C, Western Union, Paypal, Alibaba Secure Payment ect.
7,Are you provide product metal parts and provide us technical
guidance?
Wearing parts,Disassembly tool(free) are what we could provide.And
we can give you technical guidance.Our technical staff can go
abroad to provide you with technical guidance.
8. How long is your warranty?
13 months free warranty, life-long maintenance.
9. Do you accept customer Logo and customized ?
we accept kinds of customized ,including logo and machine .
