Brand Name : | AOXUANZG |
Model Number : | WE67Y-63T/2500MM |
Certification : | CE |
Price : | $28859-$39978/unit |
Payment Terms : | L/C, T/T, Western Union, D/P, D/A |
Supply Ability : | 500sets/Year |
Delivery Time : | 20-30 days |
Features:
WC67Y Hydraulic Press brake
1. Steel-welded construction, vibration to eliminate stress, with
high strength and good rigidity.
2. Hydualic top-drive, steadiness and reliability. Mechanical stop,
steel torsion bar maintain synchronization, high precision.
3. Motorize-adjustinf device of backgauge and rams stroke, fine
adjusting by handwheel, numberical display.
Characteristics
1. Adopt integrated hydraulic control system, more reliable and
easy for maintenance. main hydraulic valves from Bosch (Germany)
2. All pipes, flange and joint with vibrations proof and leakage
proof design and setting .
3. Overload overflow protection is outfitted to hydraulic
system,which can assure no leakage,and the oil level can be read or
seen directly.
4. The hydraulic system is made in compliance with current
regulations.
Technical Parameters:
Model | Nominal pressure (KN) | Worktable Length (mm) | Columns Distance (mm) | Throat | Slider | Max | Main | Dimension |
Depth | Stroke | Open | motor | L x W x H | ||||
(mm) | (mm) | height | Power | (mm) | ||||
(mm) | (KW) | |||||||
WC67Y/K-30/1600 | 300 | 1600 | 1280 | 200 | 80 | 190 | 3 | 1700×900×1650 |
WC67Y/K-30/2000 | 300 | 2000 | 1280 | 200 | 80 | 190 | 3 | 1700×900×1650 |
WC67Y/K-40/2500 | 400 | 2500 | 1900 | 280 | 100 | 320 | 5.5 | 2600×1100×1900 |
WC67Y/K-63/2500 | 630 | 2500 | 1900 | 350 | 170 | 380 | 5.5 | 3100×1450×2050 |
WC67Y/K-80/3200 | 800 | 3200 | 2700 | 350 | 170 | 380 | 7.5 | 3500×1550×2100 |
WC67Y/K-100/3200 | 1000 | 3200 | 2700 | 400 | 200 | 420 | 7.5 | 3500×1580×2400 |
WC67Y/K-160/3200 | 1600 | 3200 | 2700 | 400 | 200 | 420 | 11 | 3500×1650×2550 |
WC67Y/K-200/3200 | 2000 | 3200 | 2700 | 400 | 200 | 420 | 15 | 3500×1680×2550 |
WC67Y/K-250/3200 | 2500 | 3200 | 2700 | 400 | 200 | 420 | 15 | 3500×1700×2600 |
WC67Y/K-320/3200 | 3200 | 3200 | 2700 | 400 | 200 | 420 | 22 | 3500×1800×2730 |
WC67Y/K-400/4000 | 4000 | 4000 | 3500 | 500 | 320 | 600 | 30 | 4300×2450×3500 |
WC67Y/K-500/5000 | 5000 | 5000 | 3900 | 500 | 320 | 600 | 37 | 5400×2810×4300 |
WC67Y/K-500/6000 | 5000 | 6000 | 4900 | 500 | 320 | 600 | 37 | 6500×2810×4300 |
WC67Y/K-500/7000 | 5000 | 7000 | 4900 | 500 | 320 | 600 | 37 | 7500×2810×4900 |
WC67Y/K-600/5000 | 6000 | 5000 | 3900 | 500 | 320 | 600 | 45 | 5500×2910×4900 |
WC67Y/K-600/6000 | 6000 | 6000 | 4900 | 500 | 320 | 600 | 45 | 6500×2910×5100 |
WC67Y/K-600/7000 | 6000 | 7000 | 5900 | 500 | 320 | 600 | 45 | 7500×2910×5200 |
WC67Y/K-800/6000 | 8000 | 6000 | 4900 | 600 | 400 | 600 | 55 | 6500×2750 ×5300 |
WC67Y/K-800/8000 | 8000 | 8000 | 6900 | 600 | 400 | 600 | 55 | 8500×2750×5900 |
WC67Y/K-1000/6000 | 10000 | 6000 | 4900 | 600 | 400 | 600 | 2×37 | 6500×2800×5600 |
WC67Y/K-1000/8000 | 10000 | 8000 | 6900 | 600 | 400 | 600 | 2×37 | 8500×2800×6100 |
WC67Y/K-1000/10000 | 10000 | 10000 | 8000 | 600 | 400 | 600 | 2×37 | 10500×2800×5850 |
WC67Y/K-1200/6000 | 12000 | 6000 | 4900 | 600 | 400 | 800 | 2×37 | 6500×3100×5850 |
WC67Y/K-1200/8000 | 12000 | 8000 | 6900 | 600 | 400 | 800 | 2×37 | 8500×3100×7150 |
Details:
The standard cofiguration:
Germany Bosch Rexroth safety valve
Germany EMB Hose connector
Schneider Electric System
Quick mold clamping device
DA66T Controller System:
Backgauge
6 Axis CNC Backgauge ,including the R1 R2 ; X1 X2 ; Z1 Z2 ,can move
up and down ; front and back , left and right , the fine adjustment
with high accuracy up to ± 0.02mm
Quick Clamp
The standard quick fixture will help you to change the upper mold
better in a short time. Convenient to save time and improve work
efficiency.

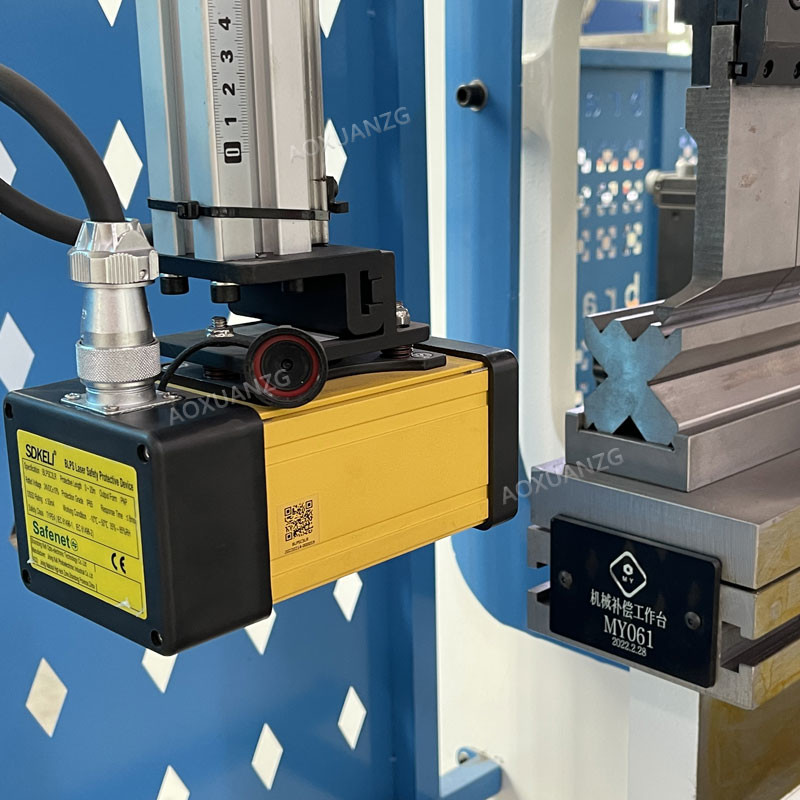

Laser Protection Device (optional)
It can effectively prevent the occurrence of pinching when working
in fast mode. Good safety performance and long service life.
