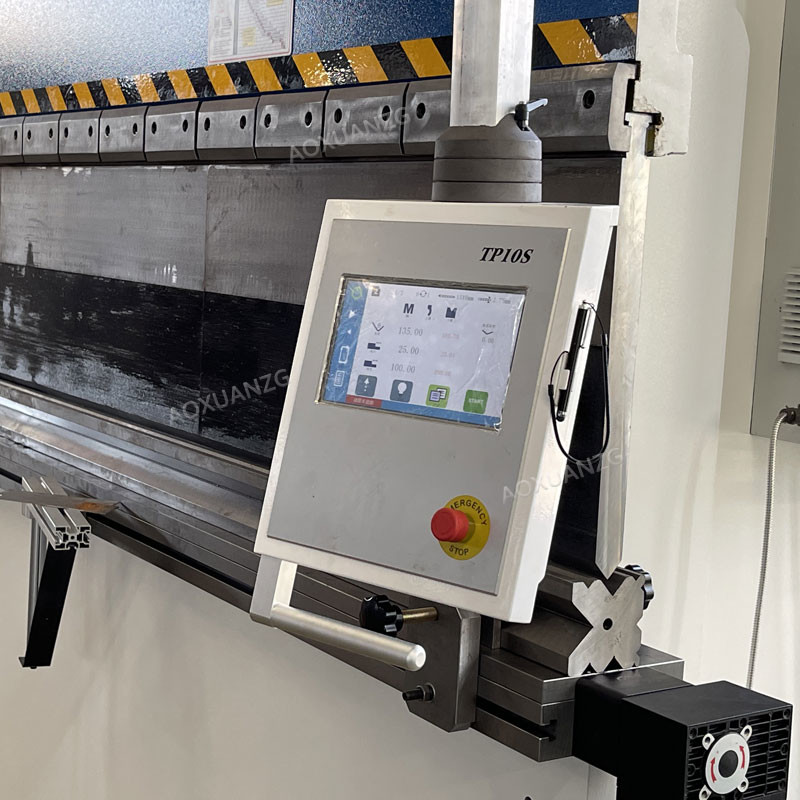

2 * 160T 5000MM Light Pole Tandem Hydraulic Press Brakes CNC With
Servo Motor TP10S
Technical Parameters:
| Model | Nominal pressure (KN) | Worktable Length (mm) | Columns Distance (mm) | Throat | Slider | Max | Main | Dimension |
| Depth | Stroke | Open | motor | L x W x H |
| (mm) | (mm) | height | Power | (mm) |
| | (mm) | (KW) | |
| WC67Y/K-30/1600 | 300 | 1600 | 1280 | 200 | 80 | 190 | 3 | 1700×900×1650 |
| WC67Y/K-30/2000 | 300 | 2000 | 1280 | 200 | 80 | 190 | 3 | 1700×900×1650 |
| WC67Y/K-40/2500 | 400 | 2500 | 1900 | 280 | 100 | 320 | 5.5 | 2600×1100×1900 |
| WC67Y/K-63/2500 | 630 | 2500 | 1900 | 350 | 170 | 380 | 5.5 | 3100×1450×2050 |
| WC67Y/K-80/3200 | 800 | 3200 | 2700 | 350 | 170 | 380 | 7.5 | 3500×1550×2100 |
| WC67Y/K-100/3200 | 1000 | 3200 | 2700 | 400 | 200 | 420 | 7.5 | 3500×1580×2400 |
| WC67Y/K-160/3200 | 1600 | 3200 | 2700 | 400 | 200 | 420 | 11 | 3500×1650×2550 |
| WC67Y/K-200/3200 | 2000 | 3200 | 2700 | 400 | 200 | 420 | 15 | 3500×1680×2550 |
| WC67Y/K-250/3200 | 2500 | 3200 | 2700 | 400 | 200 | 420 | 15 | 3500×1700×2600 |
| WC67Y/K-320/3200 | 3200 | 3200 | 2700 | 400 | 200 | 420 | 22 | 3500×1800×2730 |
| WC67Y/K-400/4000 | 4000 | 4000 | 3500 | 500 | 320 | 600 | 30 | 4300×2450×3500 |
| WC67Y/K-500/5000 | 5000 | 5000 | 3900 | 500 | 320 | 600 | 37 | 5400×2810×4300 |
| WC67Y/K-500/6000 | 5000 | 6000 | 4900 | 500 | 320 | 600 | 37 | 6500×2810×4300 |
| WC67Y/K-500/7000 | 5000 | 7000 | 4900 | 500 | 320 | 600 | 37 | 7500×2810×4900 |
| WC67Y/K-600/5000 | 6000 | 5000 | 3900 | 500 | 320 | 600 | 45 | 5500×2910×4900 |
| WC67Y/K-600/6000 | 6000 | 6000 | 4900 | 500 | 320 | 600 | 45 | 6500×2910×5100 |
| WC67Y/K-600/7000 | 6000 | 7000 | 5900 | 500 | 320 | 600 | 45 | 7500×2910×5200 |
| WC67Y/K-800/6000 | 8000 | 6000 | 4900 | 600 | 400 | 600 | 55 | 6500×2750 ×5300 |
| WC67Y/K-800/8000 | 8000 | 8000 | 6900 | 600 | 400 | 600 | 55 | 8500×2750×5900 |
| WC67Y/K-1000/6000 | 10000 | 6000 | 4900 | 600 | 400 | 600 | 2×37 | 6500×2800×5600 |
| WC67Y/K-1000/8000 | 10000 | 8000 | 6900 | 600 | 400 | 600 | 2×37 | 8500×2800×6100 |
| WC67Y/K-1000/10000 | 10000 | 10000 | 8000 | 600 | 400 | 600 | 2×37 | 10500×2800×5850 |
| WC67Y/K-1200/6000 | 12000 | 6000 | 4900 | 600 | 400 | 800 | 2×37 | 6500×3100×5850 |
| WC67Y/K-1200/8000 | 12000 | 8000 | 6900 | 600 | 400 | 800 | 2×37 | 8500×3100×7150
|
The standard cofiguration:

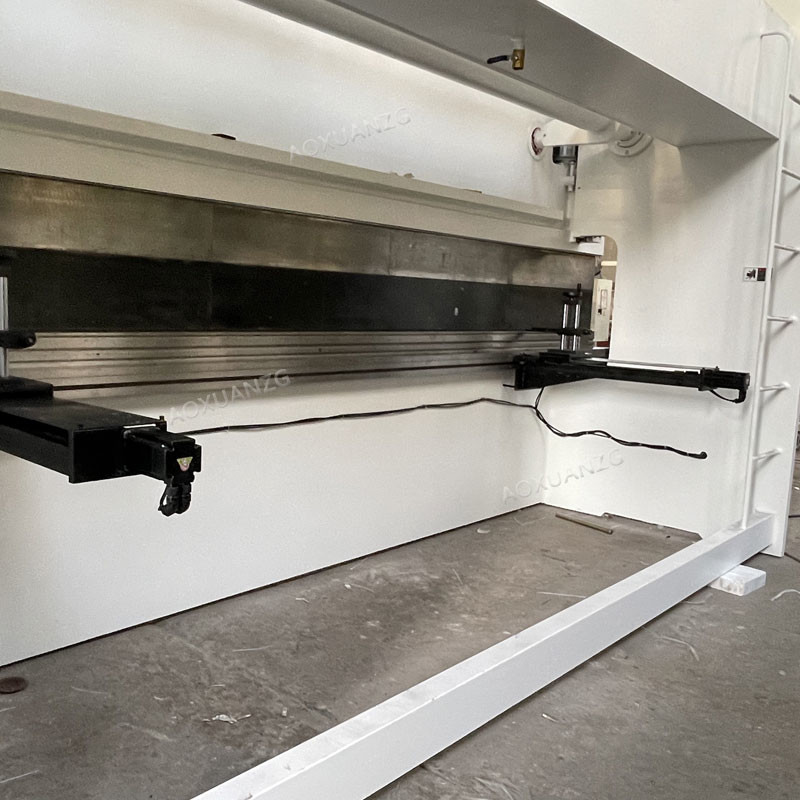

High precision backguage
Germany Bosch Rexroth safety valve
Germany EMB Hose connector

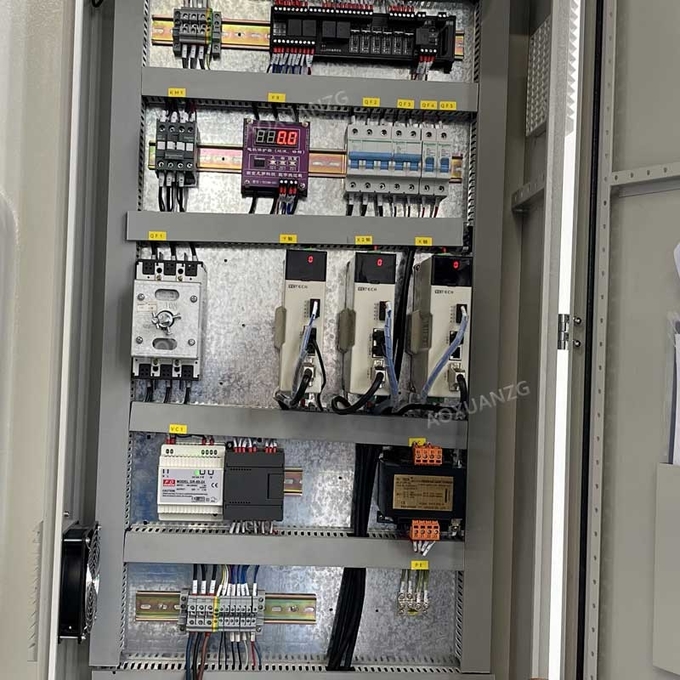

Schneider Electric Syste
RV reducer motor working table compensation (Optional)
Compensation device on workbench (Optional
Quick mold clamping device
Details:
Certifications:
Our Service
Pre-sales.
* Project design, performance introduction, technical agreement,
contract signing, packaging
* Inquiry and consulting support.
* Sample testing support.
In-sales.
* We will provide you with the latest progress in the product
assembly, packaging and transportation.
After-sales.
* We will provide free accessories for the damage to non - human
parts.
* Training how to install the machine, training how to use the
machine with video and so on
* And our technical staff can go abroad to provide technical
guidance.
Our Company:
FAQ:
1. Are you the manufacture? Can we visit your factory?
We are manufacturer and we are located in Anhui,China. And we have
our own design team for products design. And welcome you visit our
factory and check our machine qualtiy on spot,any question will be
solved on spot at first time.
2. And are you able to update the production process Information in
time after placing our order?
After confirming your order ,we would keep you updated of
production details of emails and photos.
3. Payment terms?
T/T, L/C, Western Union, Paypal, Alibaba Secure Payment ect.
4,Are you provide product metal parts and provide us technical
guidance?
Wearing parts,Disassembly tool(free) are what we could provide. And
we can give you technical guidance.
Our technical staff can go abroad to provide you with technical
guidance.
5. How long is your warranty?
13 months free warranty, life-long maintenance.
6. Do you accept customer Logo and customized ?
we accept kinds of customized ,including logo and machine .
