    Customized 35T CNC Mechanical Punching Machine Forming Press To Bangladesh

    Ask Lasest Price
    Brand Name : AOXUANZG
    Model Number : J23-35T
    Certification : CE
    Price : $7000
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 500sets/Year
    Delivery Time : 20-30 days
    • Product Details
    • Company Profile

    Customized 35T CNC Mechanical Punching Machine Forming Press To Bangladesh

    Color Customized 35T CNC Mechanical Punching Press Machine Forming Press To Bangladesh


    Intergrally forged frame, never deformation.
    Adopts crankshaft-type structure, the crankshaft is made by 45# forged steel, significantly improving the crankshaft service life. All copper tile is used reduce the operation friction and wear to improve the machine service life.
    Forged steel gear with good wear-resistant property and longer service life.
    Brake belt is made by 16Mn material and equipped with friction block for providing reliable and controllable brake force, and with good hydraulic transmission and cooling capacity to avoid hydraulic failure and recession caused by overheat.


    Technical Parameters:
    ModelJ23-6.3TJ23-12TJ23-16TJ23-25TJ23-40TJ23-63TJ23-80TJ23-100TJ23-125T
    Nominal Pressure(KN)6312016025040063080010001250
    Nominal Pressure Stroke(mm)1.5222.544555
    Slide stroke(mm)40506070100100120120140
    Stroke frequency (times/min)150140100705556455040
    Die Set Height (mm)120130170200240275300320340
    Die Height Adjustment304040405663708090
    Worktable Size ( front-back) (mm)210220290350400450480580700
    Worktable Size ( Left-Right)(mm)3503704605606806807809101100
    Max Tilt Angle202030152525252020
    Die Handle Hole Size (mm)253035405050606060
    Thickness of the Worktable30354550708090110120
    Worktable Hole Diameter7090120130135140160160170
    Power(KW)0.751.51.52.2345.57.511
    Column Spacing (mm)140170190240250280320390400
    Dimensions (mm)400*500*1300600*530*1500760*650*1600900*700*20001400*1000*23001700*1150*25002000*1300*26501950*1400*28502300*1500*3000
    Throat Depth (mm)120130170190250260290330330

    Details:


    The machine body have been heat-treated to eliminate internal stress. At the same time, they have been processed on our CNC floor boring and milling machine. the bottom surface of the worktable, the side of the slider guide rail, and the crank sleeve are processed integrally to ensure the initial accuracy of assembly.


    Customized 35T CNC Mechanical Punching Machine Forming Press To Bangladesh


    Warning sign


    Customized 35T CNC Mechanical Punching Machine Forming Press To Bangladesh


    Both-hands operation buttons to ensure the operators' safety.


    Customized 35T CNC Mechanical Punching Machine Forming Press To Bangladesh


    Use Chinese famous brand electrics to ensure the machine service life.

    Safety light on our machine which is Convenient to use for lighting at night working.

    T type slot, easy to install and uninstall molds,It is firmly fixed and will not move.Table size can be customized.


    Customized 35T CNC Mechanical Punching Machine Forming Press To Bangladesh

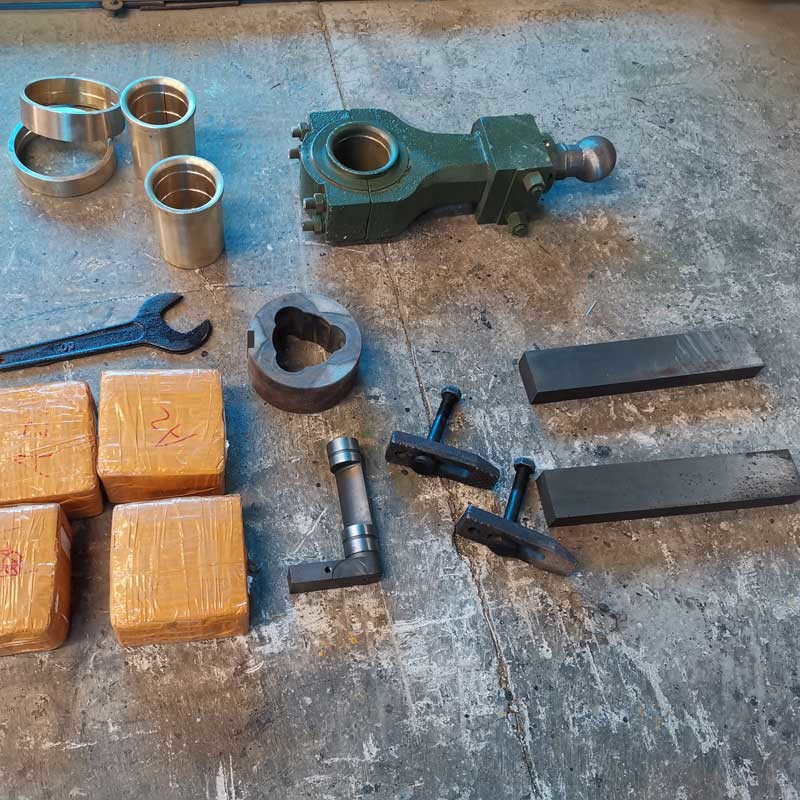

    Accessories box


    Customized 35T CNC Mechanical Punching Machine Forming Press To Bangladesh


    Packing Detail:

    ☂ Each Power press with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
    ✈ We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.


    Delivery Detail :
    ☀ Shipped in 15 days after payment.


    Customized 35T CNC Mechanical Punching Machine Forming Press To BangladeshCustomized 35T CNC Mechanical Punching Machine Forming Press To BangladeshCustomized 35T CNC Mechanical Punching Machine Forming Press To Bangladesh


    FAQ:

    1. Are you the manufacture?Can we visit your factory?

    We are manufacturer and we are located in Anhui,China.And we have our own design team for products design.

    And welcome you visit our factory and check our machine qualtiy on spot,any question will be solved on spot at first time.


    2. What's your main product and what is your main foreign market?
    Our main products are press brake,shears machine,press,cutting machine,locking machine ,auto duct line and related products.

    Our main foreign market are Asia, North America, Europe, Africa.

    3. what are the advantages of your machines?And how can i believe the quality of your product?

    The main configuration is to import quality products, and Professional product quality inspection team ensure machine in top-quality, precision and life.

    For example,Germany Bosch-Rexroth Valve group,Germany Siemens Main Motor,Schneider Electrics system and so on.

    Once tested as qualified .our machine would be sent out.So The quality of our product is stable and reliable.

    4. And are you able to update the production process Information in time after placing our order?
    After confirming your order ,we would keep you updated of production details of emails and photos.

    5. Can we be your agent?
    Yes,we are looking for Global agent we will help agent improve the market ,and supply all the service like machine technical problem or other after-sales problem, meanwhile ,you can get big discount and commission.

    6. Payment terms?
    T/T, L/C, Western Union, Paypal, Alibaba Secure Payment ect.


    7, Are you provide product metal parts and provide us technical guidance?
    Wearing parts,Disassembly tool(free) are what we could provide.And we can give you technical guidance.Our technical staff can go abroad to provide you with technical guidance.


    8. How long is your warranty?

    13 months free warranty, life-long maintenance.

    9. Do you accept customer Logo and customized ?
    we accept kinds of customized ,including logo and machine

    For more information, please contact me (^o^)/~
