    Automatic Aluminum Foil Lunch Box Production Line 3 Cavity 4 Cavity

    Ask Lasest Price
    Brand Name : Aoxuanzg
    Model Number : JF21-63
    Certification : CE,ISO
    Price : $17800-38000
    Payment Terms : L/C, Western Union, MoneyGram, T/T
    Supply Ability : 500 sets per year
    Delivery Time : 50-60 days
    • Product Details
    • Company Profile

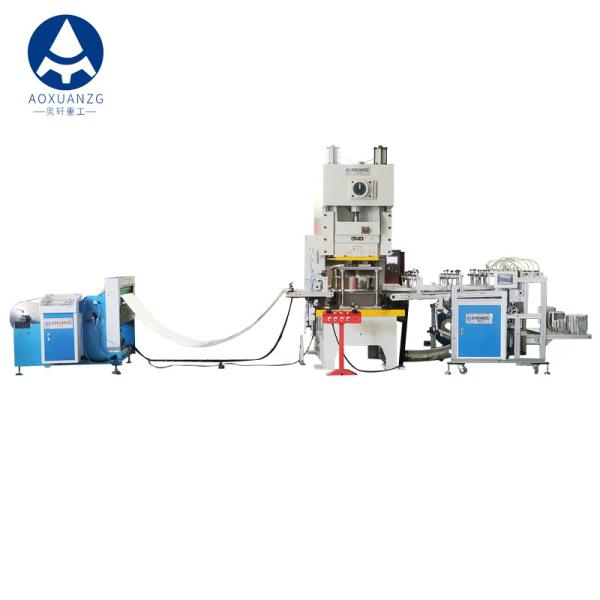

    Automatic Aluminum Foil Lunch Box Production Line 3 Cavity 4 Cavity

    3-Cavity 4-Cavity Automatic Aluminum Foil Lunch Box Production Line Price


    1. Feeder with lubricating oil system:

    maximum. Roll diameter: ¢800mm
    maximum. Roll width: 700mm
    Feed speed: 20-50M/min
    Feeding length: 30-999mm
    Feed tolerance: +/-0.3mm


    2. 45T high precision pneumatic press:
    Body working plate hole size: 300*300mm
    Travel time: 60-100 times/min
    Stroke height: 240mm
    Working plate thickness: 100mm
    maximum. Mould installation height: 390mm
    Bottom size of slider, handle hole size: 220*400mm
    The distance from the center of the slice to the body: 340mm
    Mould height adjustment: 80mm
    Die handle hole size: 60mm
    Table size: 1000*800 mm


    3. Two-track stacker
    Conveyor belt width: 550mm
    Current collector belt height: 1100-1300mm
    Minimum container size: 120 x 100mm (size can be adjusted)
    Maximum container size: 360 x 250 (size can be adjusted)
    Maximum working speed: 65 pc/min


    4. Waste collector
    Speed: 1450rpm
    Capacity: 4kw
    Lift: 1.5m


    5. Mould: Mould price depends on your container size.
    Customers need to send us the aluminum foil container first, then we will calculate the mold cost according to your size


    Main Configuration:

    Serial No.Part DescriptionBrandPlace of Origin
    1.The Whole StructureAOXUANZGMaanshan,Anhui,China
    2.SlideAOXUANZGMaanshan,Anhui,China
    3.CrankshaftAOXUANZGMaanshan,Anhui,China
    4.Connecting RodAOXUANZGMaanshan,Anhui,China
    5.GearsAOXUANZGMaanshan,Anhui,China
    6.Hydraulic Overload ProtectionKingairTaiwan
    7.Double ValveTACOJapan
    8.Cam ControllerEstunNanjing,Jiangsu,China
    9.Dry Friction ClutchOMPIItaly
    10.Sealing ElementSOGTaiwan
    11.AC ContactorSchneiderFrance
    12.Intermediate RelayOmronJapan
    13.BreakerSchneiderFrance
    14.Power Door LockSchneiderFrance
    15.TransformerChintZhejiang,China
    16.Grease PumpIHIJapan
    17.BearingsNSK or HRB,ZWZ,LYCJapan or China
    18.Pneumatic ComponentsAirTACTaiwan
    19.Photo-electronic DeviceLionZhejiang,China
    20.MotorTECOTaiwan
    21.Frequency TransformerDeltaTaiwan
    22.Anti Vibration Press MountHengRunZhejiang,China
    23.LampHengTe

    Shandong,China

    Automatic Aluminum Foil Lunch Box Production Line 3 Cavity 4 CavityAutomatic Aluminum Foil Lunch Box Production Line 3 Cavity 4 Cavity


    Our Service:

    Pre-sales.
    * Project design, performance introduction, technical agreement, contract signing, packaging
    * Inquiry and consulting support.
    * Sample testing support.

    In-sales.
    * We will provide you with the latest progress in the product assembly, packaging and transportation.

    After-sale.
    * We will provide free accessories for the damage to non - human parts.
    * Training how to install the machine, training how to use the machine with video and so on
    * And our technical staff can go abroad to provide technical guidance.


    For more information, please contact me (^o^)/~
