Hydraulic CNC NC Metal Plate Carbon Steel Shearing Machine With Ruler

    Buy cheap Hydraulic CNC NC Metal Plate Carbon Steel Shearing Machine With Ruler from wholesalers

    Buy cheap Hydraulic CNC NC Metal Plate Carbon Steel Shearing Machine With Ruler from wholesalers
    • Buy cheap Hydraulic CNC NC Metal Plate Carbon Steel Shearing Machine With Ruler from wholesalers
    • Buy cheap Hydraulic CNC NC Metal Plate Carbon Steel Shearing Machine With Ruler from wholesalers

    Hydraulic CNC NC Metal Plate Carbon Steel Shearing Machine With Ruler

    Ask Lasest Price
    Brand Name : Aoxuanzg
    Model Number : QC12Y
    Certification : CE,ISO
    Price : $134530-155650
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 500 sets per year
    Delivery Time : 20-30 working days
    • Product Details
    • Company Profile

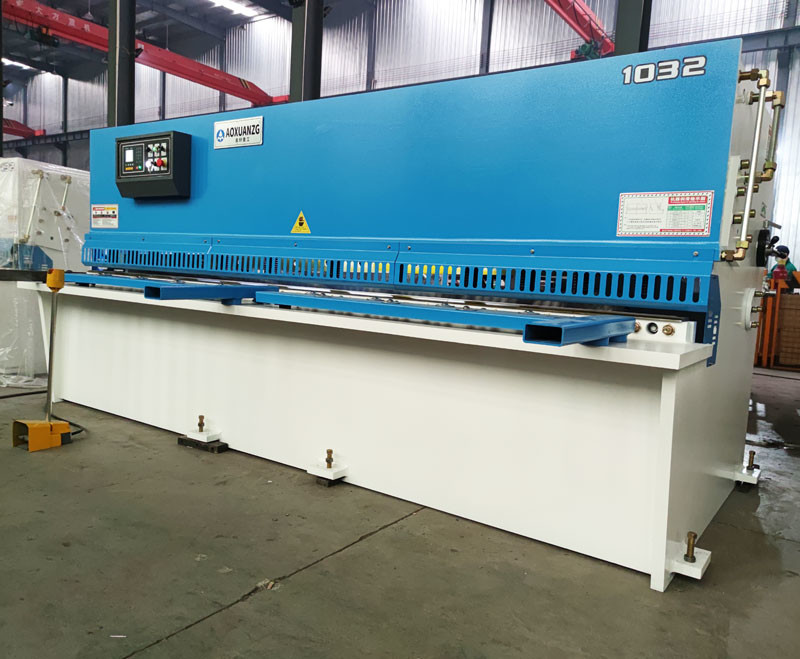

    Hydraulic CNC NC Metal Plate Carbon Steel Shearing Machine With Ruler

    Blue Hydraulic CNC NC Metal Plate Carbon Steel Cutting Shears Machine With Ruler


    Product Application
    1. Totally EU streamlined design,Monoblock by welding robots & aparatus and stress relief process by Annealing treatment.
    2. Adopt integrated hydraulic system, more reliable and easy for maintenance. and the hydraulic system from Bosch-Rexroth,Germany,
    3. The Hydraulic Guillotine is a Swing Beam Action machine which is produced in a variety of cutting lengths and capacity.
    4. The distance of the backgauge is adjusted by the motor and is well adjustment is displayed by E21with Delta inverter.
    5. Equipped with lighting-alignment, so as to align when shearing. The stroke of knife beam can be adjusted in stepless mode.
    6. Safe fence and the electric inter locker have been designed for the machine to ensure the operation safety to CE regulation.


    Estun E21s

    1. Backgauge and block control
    2. Control for general AC motors, frequency inverter
    3. Intelligent positioning
    4. Stock counter
    5. Holding/decompression time setting
    6. Program memory of up to 40 programs
    7. Up to 25 steps per program
    8. One side positioning
    9. Retract function
    10. One key backup/restore of parameters
    11. mm/inch
    12. Chinese /English


    Technical Parameters:

    Model

    Thickness

    (mm)

    Cutting Length

    (mm)

    Cutting Angle

    (°)

    Material Strength

    (KN/CM)

    Stroke

    (times/min)

    Power

    (kw)

    Dimension

    (mm)

    4×2500425001°30’≤450105.53040*1610*1620
    4×3200432001°30’≤450105.53840*1610*1620
    4×4000440001°30’≤45085.54600*1700*1700
    4×6000460001°30’≤45057.56460*2100*3200
    6×2500625001°30’≤450107.53040*1610*1620
    6×3200632001°30’≤45097.53840*1610*1620
    6×4000640001°30’≤45087.54620*1750*1700
    6×5000650001°30’≤45067.55400*1750*1700
    6×6000660001°30’≤4505116480*2100*2300
    8×2500825001°30’≤450107.53040*1700*1700
    8×3200832001°30’≤45087.53860*1700*1700
    8×4000840001°30’≤45087.54640*1700*1700
    8×5000850001°30’≤45087.55400*2400*2000
    8×6000860001°30’≤4508116480*2100*2350
    10×25001025001°30’≤4509113040*1700*1700
    10×32001032001°30’≤4509113860*1700*1700
    10×40001040001°30’≤4508114650*2100*2000
    10×6000106000≤4505156500*2100*2300
    12×2500122500≤450918.53140*2150*2000
    12×3200123200≤450918.53880*2150*2000
    12×4000124000≤450818.54680*2150*2000
    12×5000125000≤450618.55900*2150*2000
    12×6000126000≤450518.56900*2600*2700
    12×8000128000≤450518.59000*3500*3500
    16×25001625002°30’≤450918.53140*2150*2000
    16×32001632002°30’≤450818.53880*2150*2000
    16×40001640002°30’≤450818.54650*2150*2200
    16×50001650002°30’≤450618.55900*2600*2700
    16×60001660002°30’≤4505226900*2700*2700
    16×80001680002°30’≤4505229000*3500*3500
    20×2500202500≤4508223440*2300*2500
    20×3200203200≤4508224150*2350*2700
    20×4000204000≤4505224850*2350*2700
    20×6000206000≤4504224850*2350*2700
    25×2500252500≤4508373200*2700*2900
    25×3200253200≤4505374200*2700*2900
    30×2500302500≤4504373300*2900*2900
    30×32003032003°30’≤4504404200*2900*2900
    40×2500402500≤4503753200*3300*3000
    40×3200403200≤4503904300*3300*320

    Hydraulic CNC NC Metal Plate Carbon Steel Shearing Machine With RulerHydraulic CNC NC Metal Plate Carbon Steel Shearing Machine With RulerHydraulic CNC NC Metal Plate Carbon Steel Shearing Machine With Ruler

    Packing Detail:
    Each Hydraulic Press Brake with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
    We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers
    and ship them abroad.
    Delivery Detail:
    Shipped in 30 days after payment
