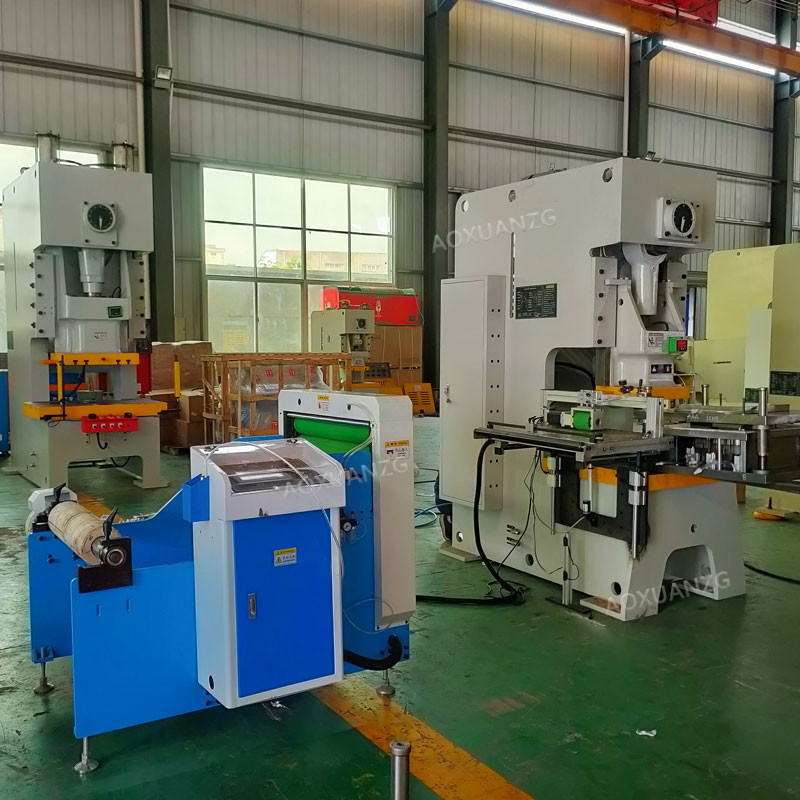

63T Full Automatic Round Aluminium Box Dish Tray Making Machine 3 Carvity With Pneumatic Punching Machine

Automatic Feeder(with lubricating system):
Max. Material Roll Dia.: 750mm
Max. Material Roll Width: 750mm
Feeding Speed:10-30M/min
Feeding Length: 30-900mm
Feeding Tolerance: +/-0.3mm
Capacity: 5Kw
Voltage: 380V/220V
Weight:1.5T
Dimension: 1400x1400x1300mm (L*W*H)
Length Controller:800x820x650mm (L*W*H)

Pressure: 630KN
Hole Size of Collecting Table: 450*450mm
Production Output: 40-80times/min
Board Thickness of Collecting Table: 70mm
Max. Height of Mould: 450mm(excluded working plate 50mm)
Slide Board Size: 350*350mm
The Distance from Center of Slide Piece and Punch Unit: 450mm
The adjustment height of Installation of Mould: 75mm
Size of Screw Hole of Mould: 70*750mm
Size of Collecting Table: 750*1100 mm*80 mm
Dimension: 1800*1425*2715mm (L*W*H)
Motor Capacity:8KW
Weight:6000kg

Optional:

Main Configuration:

Molds:

1. The moulds that we design and produce are suitable for every kind of machine or press.

2. We produce mould with the best quality steel in China. And some main mould areas are made high-temperature heat treatment for proper hardness, which ensure moulds are in top quality and long life.

3. To meet customers’ different requirement, we design and manufacture the mould in several rims, such as G rim, L rim, H rim, and IVC etc.

4. We can design and produce the mould in multi-cavities, 1, 2, 3, 4 cavities or more. no matter it is one compartment container or multi-compartments container.

5. We can print your preferred logos upon request.

6. Scientific design make the Cutting Scrap Rate under good control.

7. Container shapes: square, rectangular, circular, oval, special shapes etc.

For more information, please contact me (^o^)/~
