Aviation Ship Industry Press Brakes Machine For 10000mm Carbon Steel DA66T

    Buy cheap Aviation Ship Industry Press Brakes Machine For 10000mm Carbon Steel DA66T from wholesalers

    Buy cheap Aviation Ship Industry Press Brakes Machine For 10000mm Carbon Steel DA66T from wholesalers
    • Buy cheap Aviation Ship Industry Press Brakes Machine For 10000mm Carbon Steel DA66T from wholesalers

    Aviation Ship Industry Press Brakes Machine For 10000mm Carbon Steel DA66T

    Ask Lasest Price
    Brand Name : Aoxuanzg
    Model Number : WC67Y
    Certification : CE/ISO
    Price : $39000-$40000/unit
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 500 sets per year
    Delivery Time : 20-30 working days
    • Product Details
    • Company Profile

    Aviation Ship Industry Press Brakes Machine For 10000mm Carbon Steel DA66T

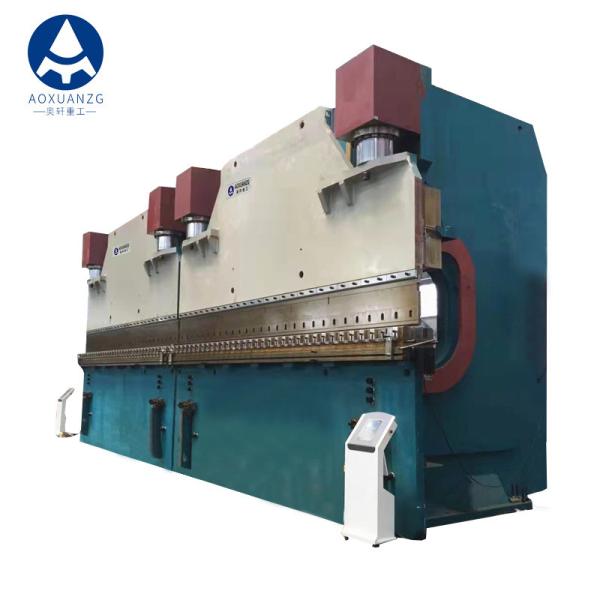

    Aviation Ship Industry Large Two-In-One Bending Machine Press Brakes Machine For 10000mm Carbon Steel DA66T


    Technical Parameters:

    Model

    Nominal pressure

    (KN)

    Worktable Length

    (mm)

    Columns Distance

    (mm)

    ThroatSliderMaxMainDimension
    DepthStrokeOpenmotorL x W x H
    (mm)(mm)heightPower(mm)
    (mm)(KW)
    WC67Y/K-30/1600300160012802008019031700×900×1650
    WC67Y/K-30/2000300200012802008019031700×900×1650
    WC67Y/K-40/2500400250019002801003205.52600×1100×1900
    WC67Y/K-63/2500630250019003501703805.53100×1450×2050
    WC67Y/K-80/3200800320027003501703807.53500×1550×2100
    WC67Y/K-100/32001000320027004002004207.53500×1580×2400
    WC67Y/K-160/3200160032002700400200420113500×1650×2550
    WC67Y/K-200/3200200032002700400200420153500×1680×2550
    WC67Y/K-250/3200250032002700400200420153500×1700×2600
    WC67Y/K-320/3200320032002700400200420223500×1800×2730
    WC67Y/K-400/4000400040003500500320600304300×2450×3500
    WC67Y/K-500/5000500050003900500320600375400×2810×4300
    WC67Y/K-500/6000500060004900500320600376500×2810×4300
    WC67Y/K-500/7000500070004900500320600377500×2810×4900
    WC67Y/K-600/5000600050003900500320600455500×2910×4900
    WC67Y/K-600/6000600060004900500320600456500×2910×5100
    WC67Y/K-600/7000600070005900500320600457500×2910×5200
    WC67Y/K-800/6000800060004900600400600556500×2750 ×5300
    WC67Y/K-800/8000800080006900600400600558500×2750×5900
    WC67Y/K-1000/600010000600049006004006002×376500×2800×5600
    WC67Y/K-1000/800010000800069006004006002×378500×2800×6100
    WC67Y/K-1000/10000100001000080006004006002×3710500×2800×5850
    WC67Y/K-1200/600012000600049006004008002×376500×3100×5850
    WC67Y/K-1200/800012000800069006004008002×37

    8500×3100×7150

    DA66T
    ● 2D graphical touch screen programming mode.
    ● 3D visualisation in simulation and production.
    ● 17 high resolution colour TFT, Full Windows apication suite.
    ● Delem Modusys compalilty (module scalabilily and adaptity).
    ● USB, peripheral iterfacing.
    ● User specific applicalion support wihin the contollers multitasking emironment
    ● Sensor bending & crrection interface.


    Aviation Ship Industry Press Brakes Machine For 10000mm Carbon Steel DA66T


    Aviation Ship Industry Press Brakes Machine For 10000mm Carbon Steel DA66T

    Standard Equipment:

    1. 8+1- axis Delem DA66T touch screem programming mode CNC control.
    2. Full synchronisation of Y1 + Y2 axes with proportional hydraulic valve system and constant monitoring by CNC system to +/- 0.01mm accuracy
    3. High precision linear scales for measurement of stroke depth mounted on side frames rather than top beam to prevent any distortion in accuracy as beam comes under load
    4. CNC-controlled X & R-axis as standard ballscrew backgauge with servo drive motors.
    5. Light guards
    6. Two micrometric backgauge finger-stops with lateral adjustment
    7. Steel mono-block construction
    8. Polished chrome plated and ground cylinders
    9. Long stroke and large open height dimensions
    10. High approach and return speeds for production bending.
    11. Euro style quick release top tool holders with intermediaries including wedges for crowning
    12. 88 degree sectionalised goose neck top tool
    13. 4 way sectionalised multi vee bottom tool
    14. Double footswitch control and pendant type control arm.
    15. AKAS laser tooling guards
    16. Electrically interlocked side guards
    17. Electrically interlocked read access door
    18. 2 sliding front support arms with linear guide rails for lateral adjustment and hand wheel for height adjustment, 1000mm long from centre of bottom tool vee.
    19. Side guard is standard meeting CE regulations.


    Aviation Ship Industry Press Brakes Machine For 10000mm Carbon Steel DA66T
