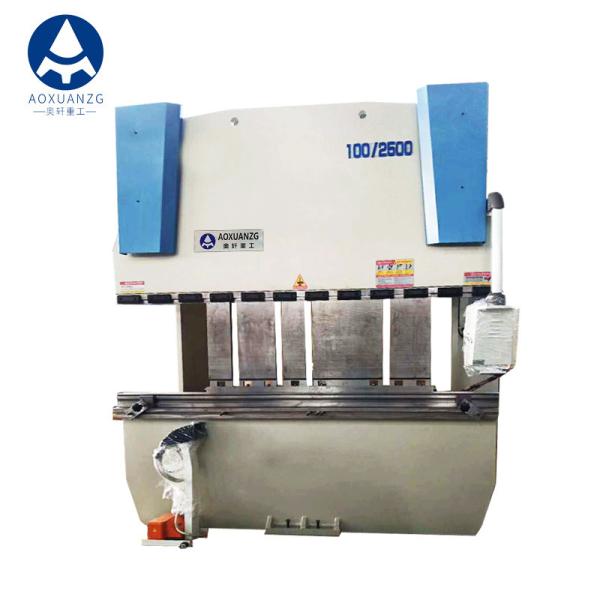

    100T 2500MM Hydraulic Press Brake Bending Machine With Customized Extension Plate

    Ask Lasest Price
    Brand Name : Aoxuanzg
    Model Number : WC67Y
    Certification : CE,ISO
    • Product Details
    • Company Profile

    100T 2500MM Hydraulic Press Brake Bending Machine With Customized Extension Plate

    100T 2500MM Hydraulic Press Brake Bending Machine With Customized Extension Plate


    MAIN FEATURE:
    1. Totally EU streamlined design. Monobloc by welding robots & apparatus and stress relief process by annealing treatment.
    2. Hydraulic top-drive, steadiness and reliability, mechanical stop, steel torsion bar to maintain synchronization, high precision.
    3. Adopt integrated hydraulic system, more reliable and easy for maintenance. and the hydraulic system from Bosch Rexroth, Germany.
    4. Travel limit protection, full machine guarding with safety interlocker.
    5. Mechanical synchronous mechanism and the complex compensation are designed so as to raise the workpieces precision.
    6. The stroke and distance of the back gauge is adjusted by the motor.
    7. Inch, single mode being designed for the machine and reversing and maintain time can be controlled by the time relays
    8. Safe fence and the electric interlocker have been designed for the machine to ensure the operation safety.
    9. Standard punches and dies. Front arm material support. Foot pedal with emergency stop.
    10. Control system: Estun NC E21, CNC DELEM DA41, DA52, DA66T.


    100T 2500MM Hydraulic Press Brake Bending Machine With Customized Extension Plate


    Technical Parameters:

    Model

    Nominal pressure

    (KN)

    Worktable Length

    (mm)

    Columns Distance

    (mm)

    ThroatSliderMaxMainDimension
    DepthStrokeOpenmotorL x W x H
    (mm)(mm)heightPower(mm)
    (mm)(KW)
    WC67Y/K-30/1600300160012802008019031700×900×1650
    WC67Y/K-30/2000300200012802008019031700×900×1650
    WC67Y/K-40/2500400250019002801003205.52600×1100×1900
    WC67Y/K-63/2500630250019003501703805.53100×1450×2050
    WC67Y/K-80/3200800320027003501703807.53500×1550×2100
    WC67Y/K-100/32001000320027004002004207.53500×1580×2400
    WC67Y/K-160/3200160032002700400200420113500×1650×2550
    WC67Y/K-200/3200200032002700400200420153500×1680×2550
    WC67Y/K-250/3200250032002700400200420153500×1700×2600
    WC67Y/K-320/3200320032002700400200420223500×1800×2730
    WC67Y/K-400/4000400040003500500320600304300×2450×3500
    WC67Y/K-500/5000500050003900500320600375400×2810×4300
    WC67Y/K-500/6000500060004900500320600376500×2810×4300
    WC67Y/K-500/7000500070004900500320600377500×2810×4900
    WC67Y/K-600/5000600050003900500320600455500×2910×4900
    WC67Y/K-600/6000600060004900500320600456500×2910×5100
    WC67Y/K-600/7000600070005900500320600457500×2910×5200
    WC67Y/K-800/6000800060004900600400600556500×2750 ×5300
    WC67Y/K-800/8000800080006900600400600558500×2750×5900
    WC67Y/K-1000/600010000600049006004006002×376500×2800×5600
    WC67Y/K-1000/800010000800069006004006002×378500×2800×6100
    WC67Y/K-1000/10000100001000080006004006002×3710500×2800×5850
    WC67Y/K-1200/600012000600049006004008002×376500×3100×5850
    WC67Y/K-1200/800012000800069006004008002×378500×3100×7150

    100T 2500MM Hydraulic Press Brake Bending Machine With Customized Extension Plate


    FAQ:


    1. what are the advantages of your machines?And how can i believe the quality of your product?

    The main configuration is to import quality products, and Professional product quality inspection team ensure machine in top-quality, precision and life.

    For example,Germany Bosch-Rexroth Valve group,Germany Siemens Main Motor,Schneider Electrics system and so on.

    Once tested as qualified .our machine would be sent out.So The quality of our product is stable and reliable.

    2. Payment terms?
    T/T, L/C, Western Union, Paypal, Alibaba Secure Payment ect.


    3 ,Are you provide product metal parts and provide us technical guidance?
    Wearing parts,Disassembly tool(free) are what we could provide.And we can give you technical guidance.Our technical staff can go abroad to provide you with technical guidance.


    4. How long is your warranty?

    13 months free warranty, life-long maintenance.

    5. Do you accept customer Logo and customized ?
    we accept kinds of customized ,including logo and machine .
