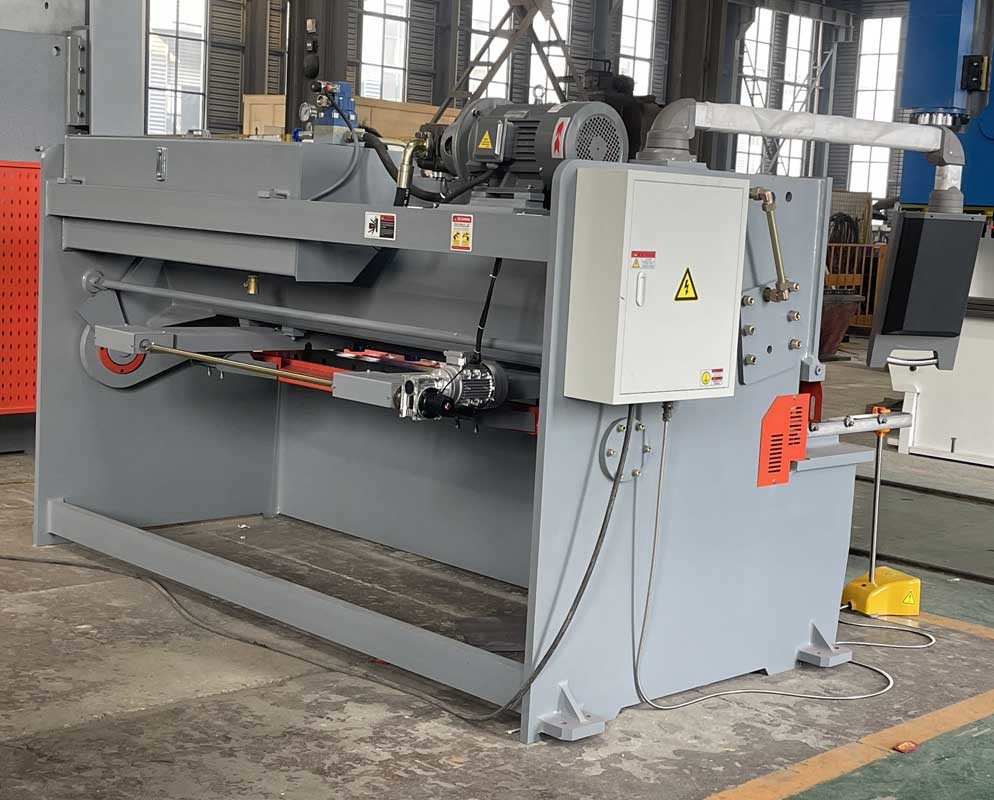

Carbon Steel Metal Plate Hydraulic Swing Shearing Machine 6x2500mm

    Buy cheap Carbon Steel Metal Plate Hydraulic Swing Shearing Machine 6x2500mm from wholesalers

    Buy cheap Carbon Steel Metal Plate Hydraulic Swing Shearing Machine 6x2500mm from wholesalers
    • Buy cheap Carbon Steel Metal Plate Hydraulic Swing Shearing Machine 6x2500mm from wholesalers
    • Buy cheap Carbon Steel Metal Plate Hydraulic Swing Shearing Machine 6x2500mm from wholesalers

    Carbon Steel Metal Plate Hydraulic Swing Shearing Machine 6x2500mm

    Ask Lasest Price
    Brand Name : Aoxuanzg
    Model Number : QC12Y
    Certification : CE,ISO
    Price : $9000-$10000/unit
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 500 sets per year
    Delivery Time : 20-30 working days
    • Product Details
    • Company Profile

    Carbon Steel Metal Plate Hydraulic Swing Shearing Machine 6x2500mm

    6*2500mm Carbon Steel Hydraulic Swing Shears Cutter Metal Plate Shearing Machine price


    QC11K series hydraulic shearing machine

    It is suitable for cutting carbon steel,stainless steel,galvanized sheet,aluminum and many other metals.It is widely used in metal processing industry,machine building industry,building construction,mining industry,railway construction and aerospace Industry.


    Features:
    This machine adopts hydraulic driving and swing tool carrier,the structure is convenient to operate to operate and maintain. the characteristic of it is that it has complete fuctions mechanical back gauge manually operated trimming and numberical value display structure it also has blade clearnce "Quick set" device,line on the plate,MD11 ,E21S,TP10S system Available as optional.


    Carbon Steel Metal Plate Hydraulic Swing Shearing Machine 6x2500mm


    Technical Parameters:

    Model

    Thickness

    (mm)

    Cutting Length

    (mm)

    Cutting Angle

    (°)

    Material Strength

    (KN/CM)

    Stroke

    (times/min)

    Power

    (kw)

    Dimension

    (mm)

    4×2500425001°30’≤450105.53040*1610*1620
    4×3200432001°30’≤450105.53840*1610*1620
    4×4000440001°30’≤45085.54600*1700*1700
    4×6000460001°30’≤45057.56460*2100*3200
    6×2500625001°30’≤450107.53040*1610*1620
    6×3200632001°30’≤45097.53840*1610*1620
    6×4000640001°30’≤45087.54620*1750*1700
    6×5000650001°30’≤45067.55400*1750*1700
    6×6000660001°30’≤4505116480*2100*2300
    8×2500825001°30’≤450107.53040*1700*1700
    8×3200832001°30’≤45087.53860*1700*1700
    8×4000840001°30’≤45087.54640*1700*1700
    8×5000850001°30’≤45087.55400*2400*2000
    8×6000860001°30’≤4508116480*2100*2350
    10×25001025001°30’≤4509113040*1700*1700
    10×32001032001°30’≤4509113860*1700*1700
    10×40001040001°30’≤4508114650*2100*2000
    10×6000106000≤4505156500*2100*2300
    12×2500122500≤450918.53140*2150*2000
    12×3200123200≤450918.53880*2150*2000
    12×4000124000≤450818.54680*2150*2000
    12×5000125000≤450618.55900*2150*2000
    12×6000126000≤450518.56900*2600*2700
    12×8000128000≤450518.59000*3500*3500
    16×25001625002°30’≤450918.53140*2150*2000
    16×32001632002°30’≤450818.53880*2150*2000
    16×40001640002°30’≤450818.54650*2150*2200
    16×50001650002°30’≤450618.55900*2600*2700
    16×60001660002°30’≤4505226900*2700*2700
    16×80001680002°30’≤4505229000*3500*3500
    20×2500202500≤4508223440*2300*2500
    20×3200203200≤4508224150*2350*2700
    20×4000204000≤4505224850*2350*2700
    20×6000206000≤4504224850*2350*2700
    25×2500252500≤4508373200*2700*2900
    25×3200253200≤4505374200*2700*2900
    30×2500302500≤4504373300*2900*2900
    30×32003032003°30’≤4504404200*2900*2900
    40×2500402500≤4503753200*3300*3000
    40×3200403200≤4503904300*3300*3200

    Details:

    Carbon Steel Metal Plate Hydraulic Swing Shearing Machine 6x2500mmCarbon Steel Metal Plate Hydraulic Swing Shearing Machine 6x2500mmCarbon Steel Metal Plate Hydraulic Swing Shearing Machine 6x2500mm

    Packing Detail:
    ☂ Each pneumatic press with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
    ✈ We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.


    Delivery Detail :
    ☀ Shipped in 30 days after payment.


    Carbon Steel Metal Plate Hydraulic Swing Shearing Machine 6x2500mm


    Pre-sales.
    * Project design, performance introduction, technical agreement, contract signing, packaging
    * Inquiry and consulting support.
    * Sample testing support.

    In-sales.
    * We will provide you with the latest progress in the product assembly, packaging and transportation.

    After-sale.
    * We will provide free accessories for the damage to non - human parts.
    * Training how to install the machine, training how to use the machine with video and so on
    * And our technical staff can go abroad to provide technical guidance.
