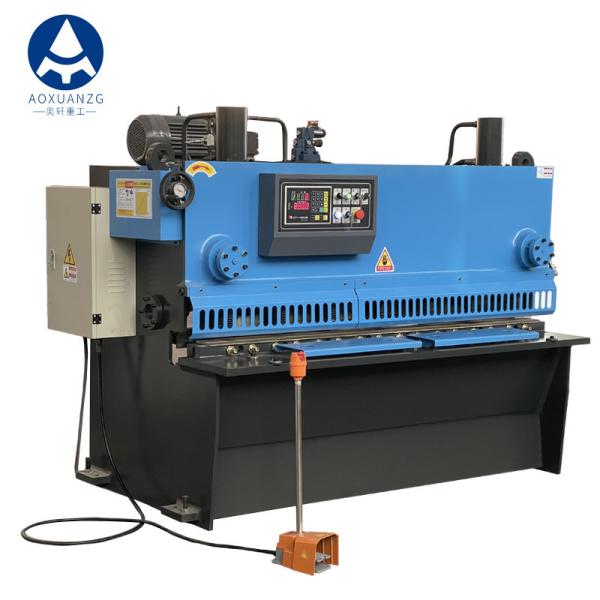

    Metal Plate Hydraulic Guillotine Cutting Machine Shears 4x1600mm Long Life

    Ask Lasest Price
    Brand Name : Aoxuanzg
    Model Number : QC12Y
    Certification : CE,ISO
    Price : $13000-$18000/unit
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 500 sets per year
    Delivery Time : 20-30 working days
    • Product Details
    • Company Profile

    Metal Plate Hydraulic Guillotine Cutting Machine Shears 4x1600mm Long Life


    Long Life Metal Plate Hydraulic Guillotine Cutting Machine Shears 4*1600mm To South Korea


    Standard Equipment:
    1. Rapid and precise blade clearance adjustment by single handle on the side frame
    2. Multi Edge Blades for cutting Aluminium, Mild Steel and Stainless Steel
    3. Cutting Line Illumination and wire for shadow line cutting
    4. Counter of Strokes, Cutting Length Adjustment
    5. Hydraulic and Electrical overload protection
    6. Squaring Arm and Front Support Arms
    7. Estun E21S NC control
    8. Germany Bosch-Rexroth Hydraulic
    9. Schneider Electrics
    10. Hydraulic and Electrical overload protection
    11. Delta inverter with ball screw and polished rod with 0,05 mm accuracy.
    12. Side guard is standard meeting CE regulations.

    Metal Plate Hydraulic Guillotine Cutting Machine Shears 4x1600mm Long Life



    Metal Plate Hydraulic Guillotine Cutting Machine Shears 4x1600mm Long LifeMetal Plate Hydraulic Guillotine Cutting Machine Shears 4x1600mm Long LifeMetal Plate Hydraulic Guillotine Cutting Machine Shears 4x1600mm Long Life

    Estun E21s

    1. Backgauge and block control
    2. Control for general AC motors, frequency inverter
    3. Intelligent positioning
    4. Stock counter
    5. Holding/decompression time setting
    6. Program memory of up to 40 programs
    7. Up to 25 steps per program
    8. One side positioning
    9. Retract function
    10. One key backup/restore of parameters
    11. mm/inch
    12. Chinese /English

    Metal Plate Hydraulic Guillotine Cutting Machine Shears 4x1600mm Long Life

    Technical Parameters:

    Model

    Thickness

    (mm)

    Cutting Length

    (mm)

    Cutting Angle

    (°)

    Material Strength

    (KN/CM)

    Stroke

    (times/min)

    Power

    (kw)

    Dimension

    (mm)

    4×2500425001°30’≤450105.53040*1610*1620
    4×3200432001°30’≤450105.53840*1610*1620
    4×4000440001°30’≤45085.54600*1700*1700
    4×6000460001°30’≤45057.56460*2100*3200
    6×2500625001°30’≤450107.53040*1610*1620
    6×3200632001°30’≤45097.53840*1610*1620
    6×4000640001°30’≤45087.54620*1750*1700
    6×5000650001°30’≤45067.55400*1750*1700
    6×6000660001°30’≤4505116480*2100*2300
    8×2500825001°30’≤450107.53040*1700*1700
    8×3200832001°30’≤45087.53860*1700*1700
    8×4000840001°30’≤45087.54640*1700*1700
    8×5000850001°30’≤45087.55400*2400*2000
    8×6000860001°30’≤4508116480*2100*2350
    10×25001025001°30’≤4509113040*1700*1700
    10×32001032001°30’≤4509113860*1700*1700
    10×40001040001°30’≤4508114650*2100*2000
    10×6000106000≤4505156500*2100*2300
    12×2500122500≤450918.53140*2150*2000
    12×3200123200≤450918.53880*2150*2000
    12×4000124000≤450818.54680*2150*2000
    12×5000125000≤450618.55900*2150*2000
    12×6000126000≤450518.56900*2600*2700
    12×8000128000≤450518.59000*3500*3500
    16×25001625002°30’≤450918.53140*2150*2000
    16×32001632002°30’≤450818.53880*2150*2000
    16×40001640002°30’≤450818.54650*2150*2200
    16×50001650002°30’≤450618.55900*2600*2700
    16×60001660002°30’≤4505226900*2700*2700
    16×80001680002°30’≤4505229000*3500*3500
    20×2500202500≤4508223440*2300*2500
    20×3200203200≤4508224150*2350*2700
    20×4000204000≤4505224850*2350*2700
    20×6000206000≤4504224850*2350*2700
    25×2500252500≤4508373200*2700*2900
    25×3200253200≤4505374200*2700*2900
    30×2500302500≤4504373300*2900*2900
    30×32003032003°30’≤4504404200*2900*2900
    40×2500402500≤4503753200*3300*3000
    40×3200403200≤4503904300*3300*3200

    Pre-sales.
    * Project design, performance introduction, technical agreement, contract signing, packaging
    * Inquiry and consulting support.
    * Sample testing support.

    In-sales.
    * We will provide you with the latest progress in the product assembly, packaging and transportation.

    After-sale.
    * We will provide free accessories for the damage to non - human parts.
    * Training how to install the machine, training how to use the machine with video and so on
    * And our technical staff can go abroad to provide technical guidance.
