Brand Name : | Aoxuanzg |
Model Number : | WC67Y-30T1600 |
Certification : | ce |
Price : | $9000-$10000/unit |
Payment Terms : | L/C, T/T, Western Union, MoneyGram |
Supply Ability : | 500 sets per year |
Delivery Time : | 20-30 working days |
High Quality 30T 1600MM CNC Hydraulic Press Bending Folding Machine Brake 220v
Technical Parameters:
Model | Nominal pressure (KN) | Worktable Length (mm) | Columns Distance (mm) | Throat | Slider | Max | Main | Dimension |
Depth | Stroke | Open | motor | L x W x H | ||||
(mm) | (mm) | height | Power | (mm) | ||||
(mm) | (KW) | |||||||
WC67Y/K-30/1600 | 300 | 1600 | 1280 | 200 | 80 | 190 | 3 | 1700×900×1650 |
WC67Y/K-30/2000 | 300 | 2000 | 1280 | 200 | 80 | 190 | 3 | 1700×900×1650 |
WC67Y/K-40/2500 | 400 | 2500 | 1900 | 280 | 100 | 320 | 5.5 | 2600×1100×1900 |
WC67Y/K-63/2500 | 630 | 2500 | 1900 | 350 | 170 | 380 | 5.5 | 3100×1450×2050 |
WC67Y/K-80/3200 | 800 | 3200 | 2700 | 350 | 170 | 380 | 7.5 | 3500×1550×2100 |
WC67Y/K-100/3200 | 1000 | 3200 | 2700 | 400 | 200 | 420 | 7.5 | 3500×1580×2400 |
WC67Y/K-160/3200 | 1600 | 3200 | 2700 | 400 | 200 | 420 | 11 | 3500×1650×2550 |
WC67Y/K-200/3200 | 2000 | 3200 | 2700 | 400 | 200 | 420 | 15 | 3500×1680×2550 |
WC67Y/K-250/3200 | 2500 | 3200 | 2700 | 400 | 200 | 420 | 15 | 3500×1700×2600 |
WC67Y/K-320/3200 | 3200 | 3200 | 2700 | 400 | 200 | 420 | 22 | 3500×1800×2730 |
WC67Y/K-400/4000 | 4000 | 4000 | 3500 | 500 | 320 | 600 | 30 | 4300×2450×3500 |
WC67Y/K-500/5000 | 5000 | 5000 | 3900 | 500 | 320 | 600 | 37 | 5400×2810×4300 |
WC67Y/K-500/6000 | 5000 | 6000 | 4900 | 500 | 320 | 600 | 37 | 6500×2810×4300 |
WC67Y/K-500/7000 | 5000 | 7000 | 4900 | 500 | 320 | 600 | 37 | 7500×2810×4900 |
WC67Y/K-600/5000 | 6000 | 5000 | 3900 | 500 | 320 | 600 | 45 | 5500×2910×4900 |
WC67Y/K-600/6000 | 6000 | 6000 | 4900 | 500 | 320 | 600 | 45 | 6500×2910×5100 |
WC67Y/K-600/7000 | 6000 | 7000 | 5900 | 500 | 320 | 600 | 45 | 7500×2910×5200 |
WC67Y/K-800/6000 | 8000 | 6000 | 4900 | 600 | 400 | 600 | 55 | 6500×2750 ×5300 |
WC67Y/K-800/8000 | 8000 | 8000 | 6900 | 600 | 400 | 600 | 55 | 8500×2750×5900 |
WC67Y/K-1000/6000 | 10000 | 6000 | 4900 | 600 | 400 | 600 | 2×37 | 6500×2800×5600 |
WC67Y/K-1000/8000 | 10000 | 8000 | 6900 | 600 | 400 | 600 | 2×37 | 8500×2800×6100 |
WC67Y/K-1000/10000 | 10000 | 10000 | 8000 | 600 | 400 | 600 | 2×37 | 10500×2800×5850 |
WC67Y/K-1200/6000 | 12000 | 6000 | 4900 | 600 | 400 | 800 | 2×37 | 6500×3100×5850 |
WC67Y/K-1200/8000 | 12000 | 8000 | 6900 | 600 | 400 | 800 | 2×37 | 8500×3100×7150 |
· New EU streamlined design
· The frame of the bending machine adopts integrated welding and
tempering to eliminate internal stress
· The frame of the bending machine adopts shot blasting to remove
rust and is sprayed with anti-rust treatment
· The frame is formed once by the imported CNC three-dimensional
machining center, which ensures the parallelism and
perpendicularity of each mounting surface.
· The controller can control the Y1 and Y2 axes (Y1 controls the
left cylinder and Y2 controls the right cylinder) to ensure the
synchronous movement of the ram
· Waiting for quiet speed, fast speed reduction (about 25
decibels), low pressure return noise (the pressure of hydraulic
system is controlled by the servo main motor in closed-loop)
· The main oil pump does not work under the servo main motor drive,
and the energy consumption is 60% lower than that of the general
CNC bending machine
· Stable oil temperature, prolonging the service life of each
component of the hydraulic system
· More technological innovations to ensure bending quality,
powerful functions and easy operation
· The bending machine adopts the latest high-frequency hydraulic
control technology, which is faster, more efficient and more stable
· The best parameter ratio, the best core material configuration,
stable performance, more convenient operation, can realize the
bending of various shapes of complex workpiece.

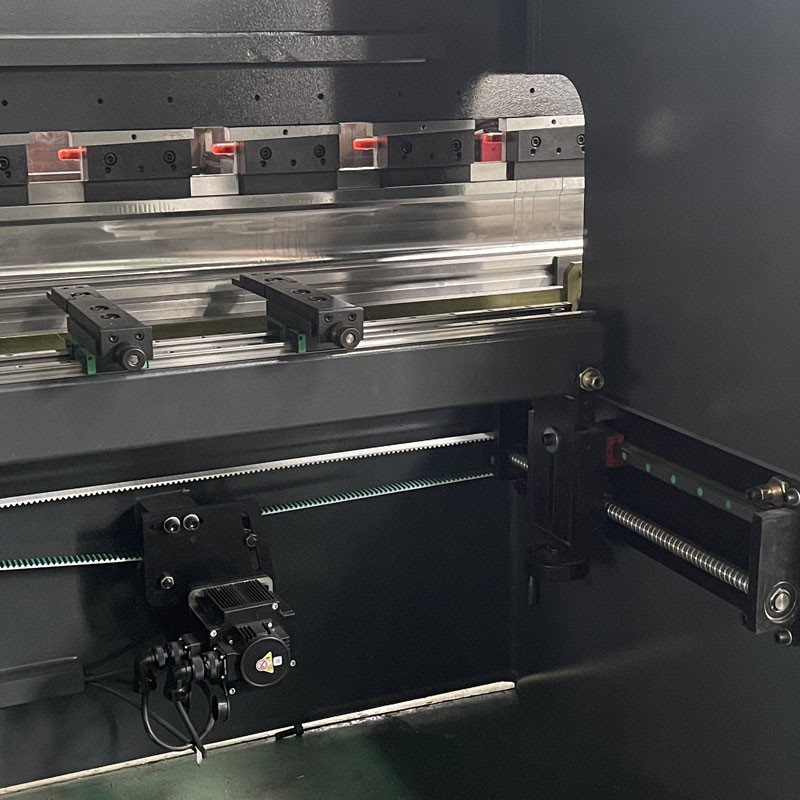

Backgauge
* High-precision backgauge device, ball screw and linear guider
rail

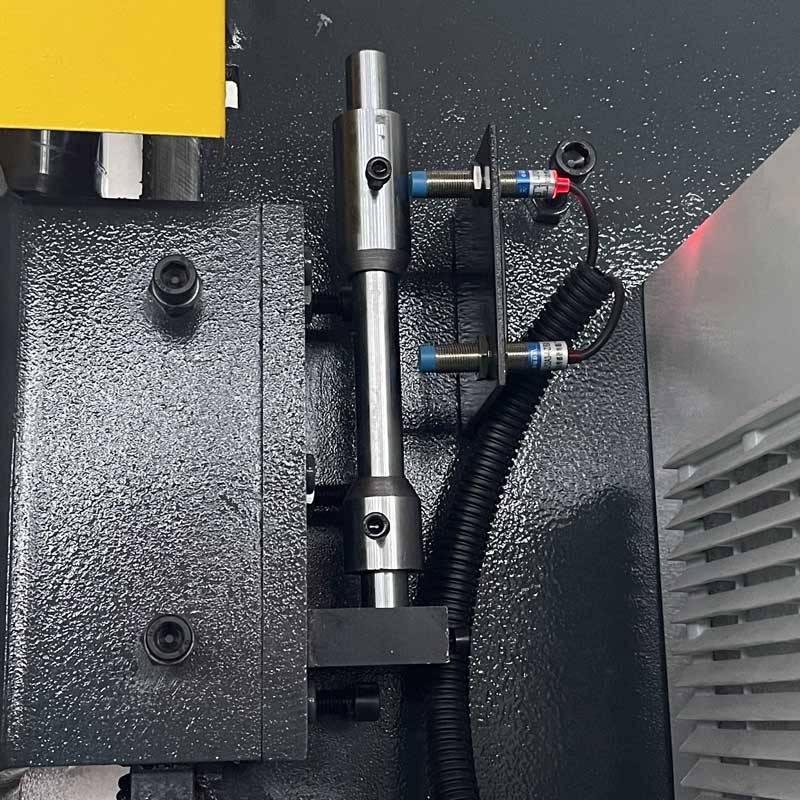

*Equipped with light-sensitive limit switch, improving limit
accuracy.
*It is driven by SERVO motor and inverter with high positioning
accuracy, unique designed synchronous transmission
mechanism,reliable and stable
Fast-clamp
Mechanical quick clamps or upper die is more safe and efficient
when changing the upper die.
Hydraulic System
The main hydraulic proportional valve adopts the German Hawe brand,
which has strong synchronization performance and high precision.
The hydraulic valve adopts German Rexroth, and the oil pump adopts
American Sunny, with low noise, long service life and strong
stability.
For more information, please contact me (^o^)/~
![]() |
