    6x3200mm Carbon Steel Hydraulic Shearing Cutter Machine WIth E21s

    Ask Lasest Price
    Brand Name : Aoxuanzg
    Model Number : QC12Y
    Certification : CE,ISO
    Price : $9000-$12000/unit
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 500 sets per year
    Delivery Time : 20-30 working days
    • Product Details
    • Company Profile

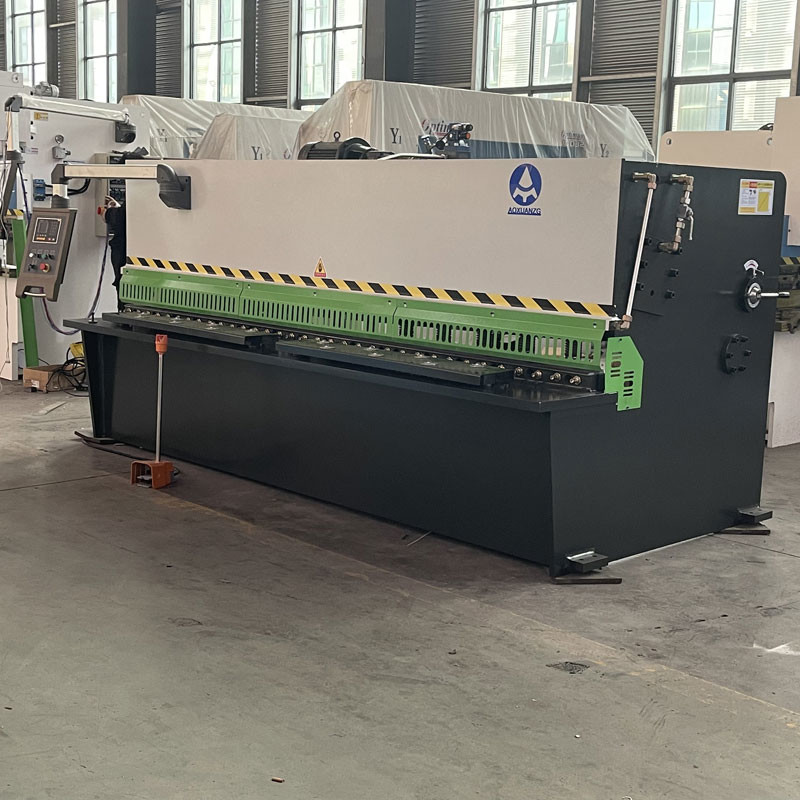

    6x3200mm Carbon Steel Hydraulic Shearing Cutter Machine WIth E21s

    6*3200mm Carbon Steel Customized Color Hydraulic Shearing Cutter Machine WIth E21s


    Product Features:
    1. High-definition LCD screen, with Chinese and English language options, one page displays programming parameters, which is more convenient and efficient when writing programs.
    2. Back gauge: intelligent positioning, manual adjustment can also be performed as needed, removing the mechanical hand-crank positioning device.
    3. Shearing stroke: Built-in shearing time relay, easy operation and cost saving.
    4. Shearing angle: Built-in shearing angle adjustment function, eliminating the need for angle indicators and buttons.
    5. Knife edge gap: encoder feedback, timely display of knife edge gap size, simple and convenient operation.
    6. It has the function of one-key backup and recovery of parameters, which can restore parameters at any time as needed, reducing maintenance costs.
    7. All the buttons on the panel are micro switches, which have been strictly tested by EMC, high and low temperature, vibration, etc. to ensure the stability and service life of the product.
    8. Passed CE certification to meet the needs of overseas markets.


    6x3200mm Carbon Steel Hydraulic Shearing Cutter Machine WIth E21s


    Technical Parameters:

    Model

    Thickness

    (mm)

    Cutting Length

    (mm)

    Cutting Angle

    (°)

    Material Strength

    (KN/CM)

    Stroke

    (times/min)

    Power

    (kw)

    Dimension

    (mm)

    4×2500425001°30’≤450105.53040*1610*1620
    4×3200432001°30’≤450105.53840*1610*1620
    4×4000440001°30’≤45085.54600*1700*1700
    4×6000460001°30’≤45057.56460*2100*3200
    6×2500625001°30’≤450107.53040*1610*1620
    6×3200632001°30’≤45097.53840*1610*1620
    6×4000640001°30’≤45087.54620*1750*1700
    6×5000650001°30’≤45067.55400*1750*1700
    6×6000660001°30’≤4505116480*2100*2300
    8×2500825001°30’≤450107.53040*1700*1700
    8×3200832001°30’≤45087.53860*1700*1700
    8×4000840001°30’≤45087.54640*1700*1700
    8×5000850001°30’≤45087.55400*2400*2000
    8×6000860001°30’≤4508116480*2100*2350
    10×25001025001°30’≤4509113040*1700*1700
    10×32001032001°30’≤4509113860*1700*1700
    10×40001040001°30’≤4508114650*2100*2000
    10×6000106000≤4505156500*2100*2300
    12×2500122500≤450918.53140*2150*2000
    12×3200123200≤450918.53880*2150*2000
    12×4000124000≤450818.54680*2150*2000
    12×5000125000≤450618.55900*2150*2000
    12×6000126000≤450518.56900*2600*2700
    12×8000128000≤450518.59000*3500*3500
    16×25001625002°30’≤450918.53140*2150*2000
    16×32001632002°30’≤450818.53880*2150*2000
    16×40001640002°30’≤450818.54650*2150*2200
    16×50001650002°30’≤450618.55900*2600*2700
    16×60001660002°30’≤4505226900*2700*2700
    16×80001680002°30’≤4505229000*3500*3500
    20×2500202500≤4508223440*2300*2500
    20×3200203200≤4508224150*2350*2700
    20×4000204000≤4505224850*2350*2700
    20×6000206000≤4504224850*2350*2700
    25×2500252500≤4508373200*2700*2900
    25×3200253200≤4505374200*2700*2900
    30×2500302500≤4504373300*2900*2900
    30×32003032003°30’≤4504404200*2900*2900
    40×2500402500≤4503753200*3300*3000
    40×3200403200≤4503904300*3300*3200

    We accept kinds of customized and logo of all of our products for customers .
    If you interested and know more related products, please contact with me ~
    More surprises waiting for you ~
