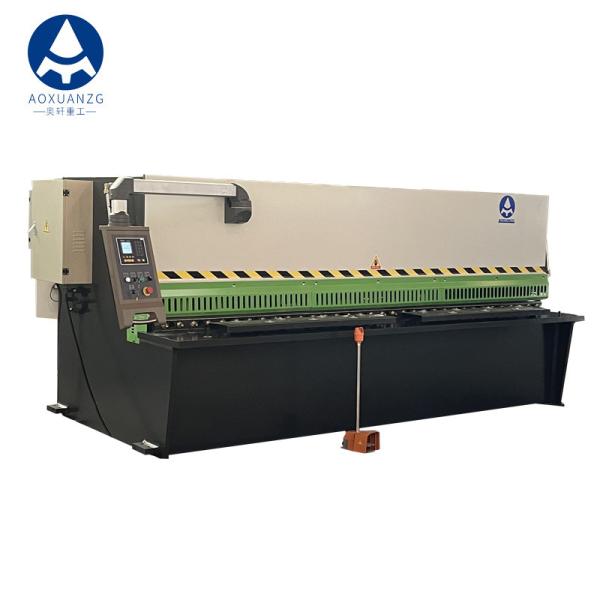

6mm 4mm Hydraulic Guillotine Shear Cutter For Carbon Steel

    Buy cheap 6mm 4mm Hydraulic Guillotine Shear Cutter For Carbon Steel from wholesalers

    Buy cheap 6mm 4mm Hydraulic Guillotine Shear Cutter For Carbon Steel from wholesalers
    • Buy cheap 6mm 4mm Hydraulic Guillotine Shear Cutter For Carbon Steel from wholesalers
    • Buy cheap 6mm 4mm Hydraulic Guillotine Shear Cutter For Carbon Steel from wholesalers

    6mm 4mm Hydraulic Guillotine Shear Cutter For Carbon Steel

    Ask Lasest Price
    Brand Name : Aoxuanzg
    Model Number : QC12Y
    Certification : CE,ISO
    Price : $10000-$12000/unit
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 500 sets per year
    Delivery Time : 20-30 working days
    • Product Details
    • Company Profile

    6mm 4mm Hydraulic Guillotine Shear Cutter For Carbon Steel

    6mm 4mm Hydraulic Swing Sheaing Machine Guillotine Shears Cutter On Sale


    Technical Parameters:

    Model

    Thickness

    (mm)

    Cutting Length

    (mm)

    Cutting Angle

    (°)

    Material Strength

    (KN/CM)

    Stroke

    (times/min)

    Power

    (kw)

    Dimension

    (mm)

    4×2500425001°30’≤450105.53040*1610*1620
    4×3200432001°30’≤450105.53840*1610*1620
    4×4000440001°30’≤45085.54600*1700*1700
    4×6000460001°30’≤45057.56460*2100*3200
    6×2500625001°30’≤450107.53040*1610*1620
    6×3200632001°30’≤45097.53840*1610*1620
    6×4000640001°30’≤45087.54620*1750*1700
    6×5000650001°30’≤45067.55400*1750*1700
    6×6000660001°30’≤4505116480*2100*2300
    8×2500825001°30’≤450107.53040*1700*1700
    8×3200832001°30’≤45087.53860*1700*1700
    8×4000840001°30’≤45087.54640*1700*1700
    8×5000850001°30’≤45087.55400*2400*2000
    8×6000860001°30’≤4508116480*2100*2350
    10×25001025001°30’≤4509113040*1700*1700
    10×32001032001°30’≤4509113860*1700*1700
    10×40001040001°30’≤4508114650*2100*2000
    10×6000106000≤4505156500*2100*2300
    12×2500122500≤450918.53140*2150*2000
    12×3200123200≤450918.53880*2150*2000
    12×4000124000≤450818.54680*2150*2000
    12×5000125000≤450618.55900*2150*2000
    12×6000126000≤450518.56900*2600*2700
    12×8000128000≤450518.59000*3500*3500
    16×25001625002°30’≤450918.53140*2150*2000
    16×32001632002°30’≤450818.53880*2150*2000
    16×40001640002°30’≤450818.54650*2150*2200
    16×50001650002°30’≤450618.55900*2600*2700
    16×60001660002°30’≤4505226900*2700*2700
    16×80001680002°30’≤4505229000*3500*3500
    20×2500202500≤4508223440*2300*2500
    20×3200203200≤4508224150*2350*2700
    20×4000204000≤4505224850*2350*2700
    20×6000206000≤4504224850*2350*2700
    25×2500252500≤4508373200*2700*2900
    25×3200253200≤4505374200*2700*2900
    30×2500302500≤4504373300*2900*2900
    30×32003032003°30’≤4504404200*2900*2900
    40×2500402500≤4503753200*3300*3000
    40×3200403200≤4503904300*3300*3200

    QC11K series hydraulic shearing machine

    It is suitable for cutting carbon steel,stainless steel,galvanized sheet,aluminum and many other metals.It is widely used in metal processing industry,machine building industry,building construction,mining industry,railway construction and aerospace Industry.


    Features:

    1. Our Hydraulic Shearing Machine is a Swing Beam Action machine which is produced in a variety of cutting lengths and capacity options.
    2. Adopt integrated hydraulic system, more reliable and easy for maintenance. and the hydraulic system from Bosch-Rexroth, Germany,
    3. Equipped with lighting-alignment, so as to align when shearing. The stroke of knife beam can be adjusted in stepless mode.
    4. Hydraulic drive, return of knife beam is smooth and prompt by nitrogen cylinder.
    5. CE conformity including Tiltable Fornt Finger Guard and Optical Rear Safety Guard,
    6. Safe fence and the electric interlocker have been designed for the machine to ensure the operation safety.


    6mm 4mm Hydraulic Guillotine Shear Cutter For Carbon Steel


    ● Estun E21sNC control System
    ● Powered Back gaugeX-axis
    ● DELTA Inverter controlled back gauge
    ● HIWIN Ball screws & Polished rod with 0,05mm accuracy.
    ● Squaring Arm and Front Support Arms
    ● Germany Bosch-Rexroth Hydraulic
    ● Germany EMB Tubing connector
    ● Germany Siemens Main Motor
    ● Tele mecanique/Schneider Electrics
    ● Hydraulic &Electrical overload protection
    ● Cutting Line Illumination and wire for shadow line cutting
    ● Top blade with two cutting edges and bottom blade with four cutting edges.(6CrW2Si)


    6mm 4mm Hydraulic Guillotine Shear Cutter For Carbon Steel


    We accept kinds of customized and logo of all of our products for customers .
    If you interested and know more related products, please contact with me ~
    More surprises waiting for you ~
