    CNC Servo Control TP10S Hydraulic Bending Machine 63T 1600MM

    Ask Lasest Price
    Brand Name : Aoxuanzg
    Model Number : WC67Y
    Certification : ce
    Price : $8000-$10000/unit
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 500 sets per year
    Delivery Time : 20-30 working days
    • Product Details
    • Company Profile

    CNC Servo Control TP10S Hydraulic Bending Machine 63T 1600MM

    CNC Servo Control TP10S 63T1600MM Hydraulic Bending Machine Press Brakes Machine


    Main features
    1. The whole machine is in sheet plate welded structure, which internal stress eliminated by vibration aging technology, high strength and good rigidity of machine.
    2. Double hydraulic oil cylinder is applied for upper transmission, provided with mechanical limit stopper and synchronous torsion bar, stable and reliable operation, as well as high precision.
    3. Electrical adjustment and manual fine-tuning adjustment mode are adopted for distance of rear stopper and stroke of gliding block, and fitted with digital display device, easy and quick in use.
    4. Upper clamp is fitted with compensation device.
    5. Worktable mechanical compensation or hydraulic compensation device is optional.


    CNC Servo Control TP10S Hydraulic Bending Machine 63T 1600MM


    Press brake:125T 3200 mm
    Standard die:3200mm Segmented Upper die with lower die.
    E21 Controller : Estun,Nanjing
    Ball screw & linear guide:HIWIN
    Hydraulic valve:Rexroth,Germany
    Tubing connector:EMB,Germany
    Main Motor:German Siemens

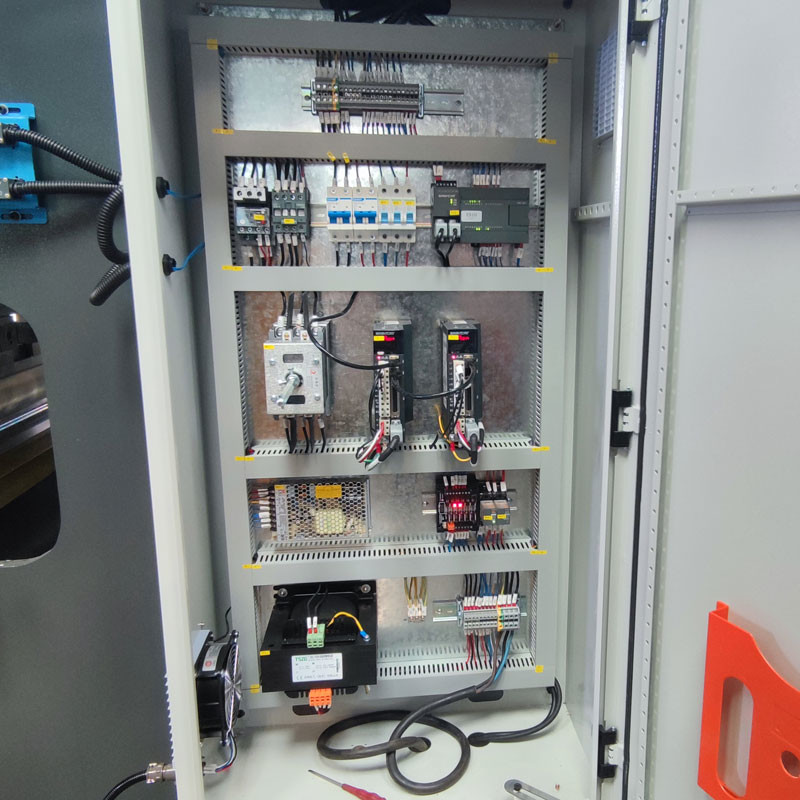

    Electrics:Schneider ,France
    Hydraulic Pump:SUNNY,USA
    Foot switch:Karcon,South Korea
    CNC Stop finger with linear guide
    Plate Support Arm
    Hydraulic & Electrical overload protection

    Fast clamp
    Protection facility :
    -laser protection(Optional)
    -Light screen protection(Optional)
    Compensation device(Optional)
    Light screen protection(Optional)
    Rear guardrail(Optional)
    Side guardrail(Optional)


    CNC Servo Control TP10S Hydraulic Bending Machine 63T 1600MM

    CNC Servo Control TP10S Hydraulic Bending Machine 63T 1600MMCNC Servo Control TP10S Hydraulic Bending Machine 63T 1600MM


    Technical Parameters:

    Model

    Nominal pressure

    (KN)

    Worktable Length

    (mm)

    Columns Distance

    (mm)

    ThroatSliderMaxMainDimension
    DepthStrokeOpenmotorL x W x H
    (mm)(mm)heightPower(mm)
    (mm)(KW)
    WC67Y/K-30/1600300160012802008019031700×900×1650
    WC67Y/K-30/2000300200012802008019031700×900×1650
    WC67Y/K-40/2500400250019002801003205.52600×1100×1900
    WC67Y/K-63/2500630250019003501703805.53100×1450×2050
    WC67Y/K-80/3200800320027003501703807.53500×1550×2100
    WC67Y/K-100/32001000320027004002004207.53500×1580×2400
    WC67Y/K-160/3200160032002700400200420113500×1650×2550
    WC67Y/K-200/3200200032002700400200420153500×1680×2550
    WC67Y/K-250/3200250032002700400200420153500×1700×2600
    WC67Y/K-320/3200320032002700400200420223500×1800×2730
    WC67Y/K-400/4000400040003500500320600304300×2450×3500
    WC67Y/K-500/5000500050003900500320600375400×2810×4300
    WC67Y/K-500/6000500060004900500320600376500×2810×4300
    WC67Y/K-500/7000500070004900500320600377500×2810×4900
    WC67Y/K-600/5000600050003900500320600455500×2910×4900
    WC67Y/K-600/6000600060004900500320600456500×2910×5100
    WC67Y/K-600/7000600070005900500320600457500×2910×5200
    WC67Y/K-800/6000800060004900600400600556500×2750 ×5300
    WC67Y/K-800/8000800080006900600400600558500×2750×5900
    WC67Y/K-1000/600010000600049006004006002×376500×2800×5600
    WC67Y/K-1000/800010000800069006004006002×378500×2800×6100
    WC67Y/K-1000/10000100001000080006004006002×3710500×2800×5850
    WC67Y/K-1200/600012000600049006004008002×376500×3100×5850
    WC67Y/K-1200/800012000800069006004008002×378500×3100×7150

    Pre-sales.
    * Project design, performance introduction, technical agreement, contract signing, packaging
    * Inquiry and consulting support.
    * Sample testing support.

    In-sales.
    * We will provide you with the latest progress in the product assembly, packaging and transportation.

    After-sale.
    * We will provide free accessories for the damage to non - human parts.
    * Training how to install the machine, training how to use the machine with video and so on
    * And our technical staff can go abroad to provide technical guidance.
