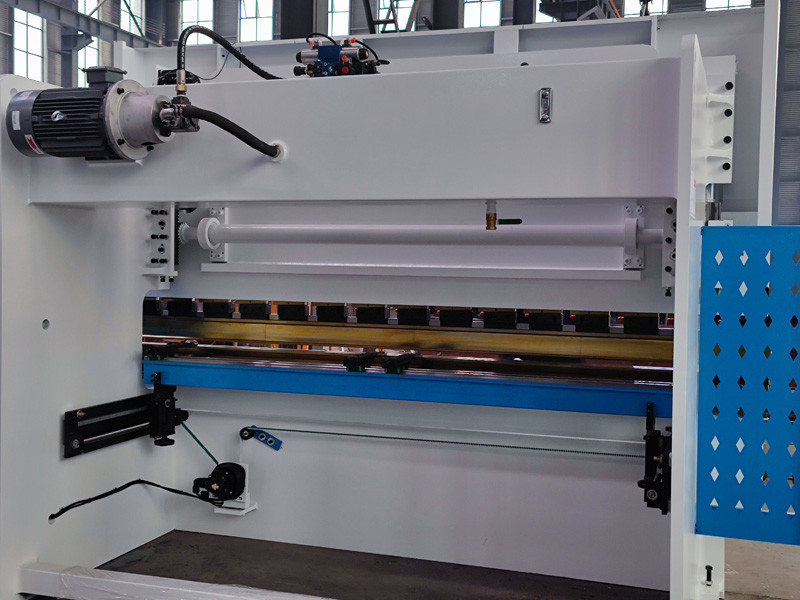

125T3200MM CNC Hydraulic Bending Machine With 7 Inches Touch Screen Interface

    Buy cheap 125T3200MM CNC Hydraulic Bending Machine With 7 Inches Touch Screen Interface from wholesalers

    Buy cheap 125T3200MM CNC Hydraulic Bending Machine With 7 Inches Touch Screen Interface from wholesalers
    • Buy cheap 125T3200MM CNC Hydraulic Bending Machine With 7 Inches Touch Screen Interface from wholesalers
    • Buy cheap 125T3200MM CNC Hydraulic Bending Machine With 7 Inches Touch Screen Interface from wholesalers

    125T3200MM CNC Hydraulic Bending Machine With 7 Inches Touch Screen Interface

    Ask Lasest Price
    Brand Name : Aoxuanzg
    Model Number : WC67Y-125T/3200
    Certification : CE,ISO
    Price : $12000-$18000/unit
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 500 sets per year
    Delivery Time : 20-30 working days
    • Product Details
    • Company Profile

    125T3200MM CNC Hydraulic Bending Machine With 7 Inches Touch Screen Interface

    125T3200MM CNC Hydraulic Bending Machine Folder Machine With 7 Inches Touch Screen Interface


    Technical parameter:


    ModelPressureWorktable lengthDistance between columnsDepth of throatStrokeMax height betweenworktable and ramMain motorWeightDimension(LxWxH)
    Unitsknmmmmmmmmmmkwmmmm
    WC67Y/K-40/25004002500192522080300430002650x1100x1950
    WC67Y/K-50/250050025002015220100340437502650x1250x2100
    WC67Y/K-63/2500630250020152501003405.543002650x1300x2200
    WC67Y/K-80/2500800250020102501203805.552002560x1350x2250
    WC67Y/K-80/3200800320025102501203805.560003260x1350x2280
    WC67Y/K-100/25001000250020503201504207.567002550x1360x2270
    WC67Y/K-100/32001000320025503201504207.572003260x1365x2520
    WC67Y/K-100/40001000400030503201504207.585004060x1365x2720
    WC67Y/K-125/32001250320025503201504207.578003260x1465x2600
    WC67Y/K-125/40001250400030503201504207.590004060x1460x2800
    WC67Y/K-160/320016003200259032020047511105003260x1580x2775
    WC67Y/K-160/400016004000304032020047511125004060x1580x2925
    WC67Y/K-160/600016006000480032020048011195006060x1580x3480
    WC67Y/K-200/320020003200258032020047518.5132003260x1650x2800
    WC67Y/K-250/400025004000313040025053018.5190004060x1840x3150
    WC67Y/K-250/500025005000393040025053018.5240005060x1840x3450
    WC67Y/K-300/320030003200253040025058018.5180003300x2100x2980
    WC67Y/K-300/400030004000320040025058018.5220004060x2040x3330
    WC67Y/K-400/400040004000318040032063030300004060x2220x3630
    WC67Y/K-400/6000400060004700400320630304500060602x2203x980
    WC67Y/K-500/60005000600046005003207030550006080x2760x4000
    WC67Y/K-800/600080006000460050040090037720006100x3250x4300

    125T3200MM CNC Hydraulic Bending Machine With 7 Inches Touch Screen Interface


    Standard configuration
    Main configuration list
    1Control systemE21 E300 DA41 TP10S CT6 CT8 CT12
    DA52S DA53T DA58T DA66T DA69T and so on
    2Electrical componentsSchneider Electrical from French
    3Main MotorSiemens from Germany Brand
    4BackGauge & RAM DriveInverter from Taiwan delta
    5Travel switchSchneider Electrical from French
    6Foot switchKACON from South Korea
    7Hydraulic SystemBosch-Rexroth form Germany
    8Hydraulic PumpSUUNY or SAEMP form Taiwan
    9Sealing ElementPARKER from U.S.A Brand
    10Tubing connectorEMB form Germany Brand
    11Ball screw/ Polished rodHIWIN from TaiWan Brand
    Safety Configuration
    1Warning of high oil temperature■Yes □No
    2High oil pressure protection■Yes □No
    3Motor overload protection■Yes □No
    4Oil inlet filter jammed warning■Yes □No
    5Laser Safety Protection□Yes ■No
    6Left & Right side protection■Yes □No
    7Electricity leakage protection■Yes □No
    8Safety Relay□Yes ■No
    9Monitoring and Redundant valves□Yes ■No
    10Safety standards■CE □CSA □NR-12 □OSHA

    125T3200MM CNC Hydraulic Bending Machine With 7 Inches Touch Screen Interface125T3200MM CNC Hydraulic Bending Machine With 7 Inches Touch Screen Interface


    Pre-sales.
    * Project design, performance introduction, technical agreement, contract signing, packaging
    * Inquiry and consulting support.
    * Sample testing support.


    In-sales.
    * We will provide you with the latest progress in the product assembly, packaging and transportation.


    After-sale.
    * We will provide free accessories for the damage to non - human parts.
    * Training how to install the machine, training how to use the machine with video and so on
    * And our technical staff can go abroad to provide technical guidance.


    FAQ:

    1. Payment terms?
    T/T, L/C, Western Union, Paypal, Alibaba Secure Payment ect.


    2,Are you provide product metal parts and provide us technical guidance?
    Wearing parts,Disassembly tool(free) are what we could provide.And we can give you technical guidance.Our technical staff can go abroad to provide you with technical guidance.


    3. How long is your warranty?
    13 months free warranty, life-long maintenance.


    4.Do you accept customer Logo and customized ?
    we accept kinds of customized ,including logo and machine .


    If you are interested, please contact me ^-^
