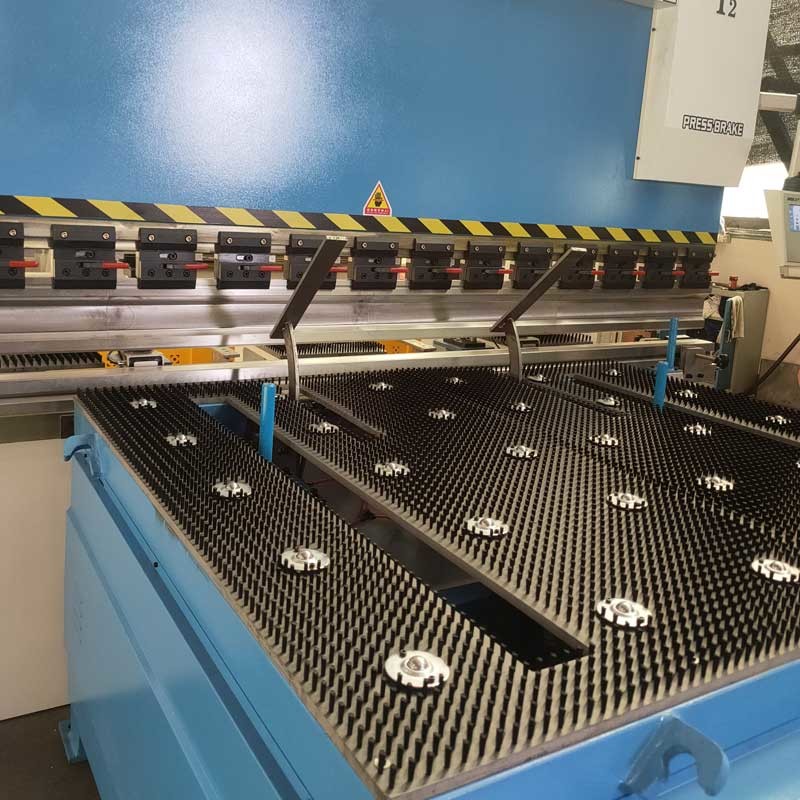

    Full Automatic Press Brakes 100T3200MM Hydraulic With Lifting Platform

    Ask Lasest Price
    Brand Name : Aoxuanzg
    Model Number : WC67Y-125T/3200
    Certification : CE,ISO
    Price : $19000-$23000/unit
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 500 sets per year
    Delivery Time : 20-30 working days
    • Product Details
    • Company Profile

    Full Automatic Press Brakes 100T3200MM Hydraulic With Lifting Platform

    Full Automatic Press Brakes 100T3200MM Hydraulic Bending Machine With Lifting Platform


    WC67Y Hydraulic Press brake
    1. Steel-welded construction, vibration to eliminate stress, with high strength and good rigidity.
    2. Hydualic top-drive, steadiness and reliability. Mechanical stop, steel torsion bar maintain synchronization, high precision.
    3. Motorize-adjustinf device of backgauge and rams stroke, fine adjusting by handwheel, numberical display.

    Technical parameter:

    ModelPressureWorktable lengthDistance between columnsDepth of throatStrokeMax height between worktable and ramMain motorWeightDimension(LxWxH)
    Unitsknmmmmmmmmmmkwmmmm
    WC67Y/K-40/25004002500192522080300430002650x1100x1950
    WC67Y/K-50/250050025002015220100340437502650x1250x2100
    WC67Y/K-63/2500630250020152501003405.543002650x1300x2200
    WC67Y/K-80/2500800250020102501203805.552002560x1350x2250
    WC67Y/K-80/3200800320025102501203805.560003260x1350x2280
    WC67Y/K-100/25001000250020503201504207.567002550x1360x2270
    WC67Y/K-100/32001000320025503201504207.572003260x1365x2520
    WC67Y/K-100/40001000400030503201504207.585004060x1365x2720
    WC67Y/K-125/32001250320025503201504207.578003260x1465x2600
    WC67Y/K-125/40001250400030503201504207.590004060x1460x2800
    WC67Y/K-160/320016003200259032020047511105003260x1580x2775
    WC67Y/K-160/400016004000304032020047511125004060x1580x2925
    WC67Y/K-160/600016006000480032020048011195006060x1580x3480
    WC67Y/K-200/320020003200258032020047518.5132003260x1650x2800
    WC67Y/K-250/400025004000313040025053018.5190004060x1840x3150
    WC67Y/K-250/500025005000393040025053018.5240005060x1840x3450
    WC67Y/K-300/320030003200253040025058018.5180003300x2100x2980
    WC67Y/K-300/400030004000320040025058018.5220004060x2040x3330
    WC67Y/K-400/400040004000318040032063030300004060x2220x3630
    WC67Y/K-400/6000400060004700400320630304500060602x2203x980
    WC67Y/K-500/60005000600046005003207030550006080x2760x4000
    WC67Y/K-800/600080006000460050040090037720006100x3250x4300

    Full Automatic Press Brakes 100T3200MM Hydraulic With Lifting Platform


    Main Configuration

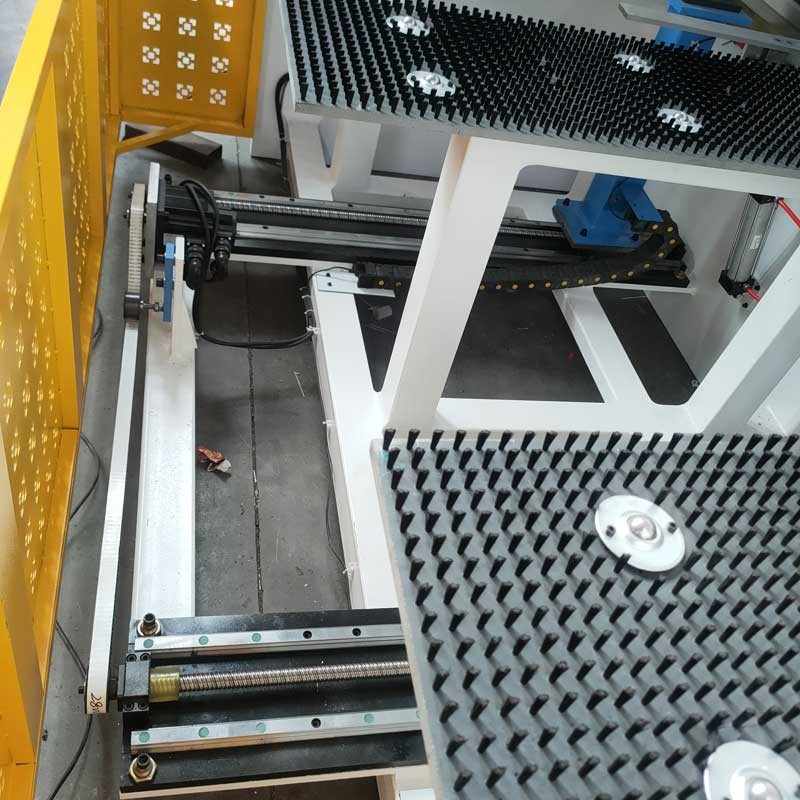

    Using HIWIN ball screw and linear guide, the accuracy is 0.01mm;
    The front support bracket can be adjusted up and down;
    German Hawe proportional valve;
    Italian GIVI grating ruler;
    German Bosch Rexroth hydraulic valve block;
    German EMB oil pipe joint;
    German Siemens main motor;
    Schneider Electric of France;
    Laser protection device;
    Hydraulic and electrical overload protection;
    Optional mechanical compensation device;
    Double V mold (material: 42CrMo).

    Full Automatic Press Brakes 100T3200MM Hydraulic With Lifting PlatformFull Automatic Press Brakes 100T3200MM Hydraulic With Lifting PlatformFull Automatic Press Brakes 100T3200MM Hydraulic With Lifting PlatformFull Automatic Press Brakes 100T3200MM Hydraulic With Lifting PlatformFull Automatic Press Brakes 100T3200MM Hydraulic With Lifting Platform


    Packing Detail:
    ☂ Each Press Brake with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
    ✈ We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
    Delivery Detail :
    ☀ Shipped in 30 days after payment.
