    Servo Motor Press Brakes Bending Machine 4X3200MM Carbon Steel TP10S

    Ask Lasest Price
    Brand Name : Aoxuanzg
    Model Number : WC67Y-125T/4000
    Certification : ce
    Price : $19000-$21000/unit
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 500 sets per year
    Delivery Time : 20-30 working days
    • Product Details
    • Company Profile

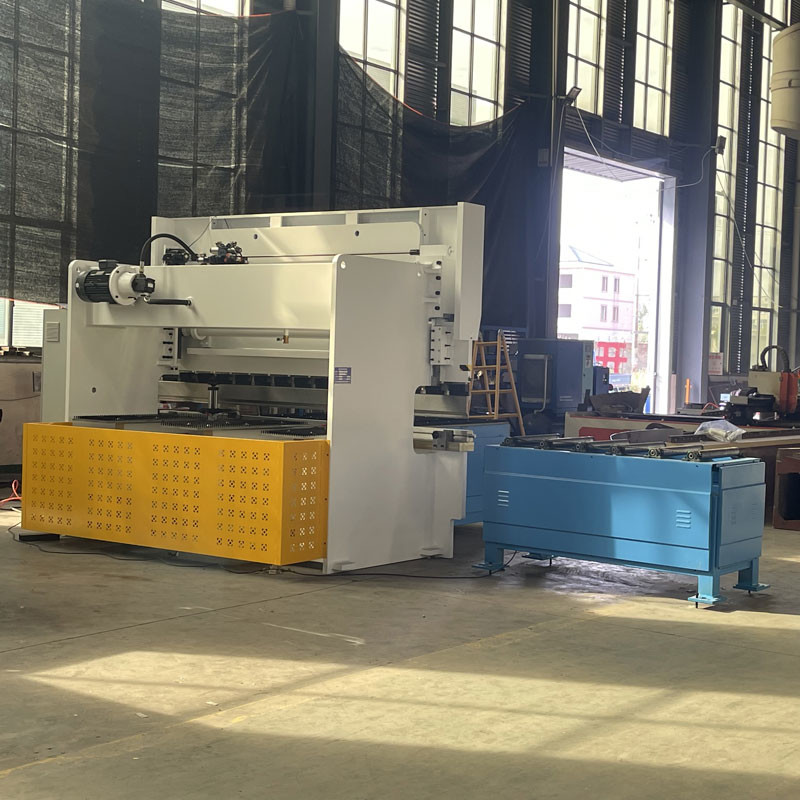

    Servo Motor Press Brakes Bending Machine 4X3200MM Carbon Steel TP10S

    Servo Motor Full Automatic Press Brakes Bending Machine 4*3200MM Carbon Steel TP10S


    Press brake
    (1) The whole EU streamlined design, heat treatment rack, high rigidity worktable, optional mechanical compensation device, to achieve precision bending.
    (2) Hydraulic synchronous control and NC or CNC programmable logic controller ensure accurate repeatability and ease use.
    (3) Integrated hydraulic system (Bosch Rexroth Germany) allows automatically switch to slow bends in a quick way.
    (4) X axis , Y axis , Z axis ,R axis and V axis realize accurate positioning function by frequency converter through NC or CNC system programming control.
    (5) Cutting-edge frequency response hydraulic control technology, more stable machine tools, more reliable operation.
    (6) The best ratio of parameters, optimal core configuration ensure stable performance, more convenient operation.


    Servo Motor Press Brakes Bending Machine 4X3200MM Carbon Steel TP10S


    Technical parameter:

    ModelPressureWorktable lengthDistance between columnsDepth of throatStrokeMax height between worktable and ramMain motorWeightDimension(LxWxH)
    Unitsknmmmmmmmmmmkwmmmm
    WC67Y/K-40/25004002500192522080300430002650x1100x1950
    WC67Y/K-50/250050025002015220100340437502650x1250x2100
    WC67Y/K-63/2500630250020152501003405.543002650x1300x2200
    WC67Y/K-80/2500800250020102501203805.552002560x1350x2250
    WC67Y/K-80/3200800320025102501203805.560003260x1350x2280
    WC67Y/K-100/25001000250020503201504207.567002550x1360x2270
    WC67Y/K-100/32001000320025503201504207.572003260x1365x2520
    WC67Y/K-100/40001000400030503201504207.585004060x1365x2720
    WC67Y/K-125/32001250320025503201504207.578003260x1465x2600
    WC67Y/K-125/40001250400030503201504207.590004060x1460x2800
    WC67Y/K-160/320016003200259032020047511105003260x1580x2775
    WC67Y/K-160/400016004000304032020047511125004060x1580x2925
    WC67Y/K-160/600016006000480032020048011195006060x1580x3480
    WC67Y/K-200/320020003200258032020047518.5132003260x1650x2800
    WC67Y/K-250/400025004000313040025053018.5190004060x1840x3150
    WC67Y/K-250/500025005000393040025053018.5240005060x1840x3450
    WC67Y/K-300/320030003200253040025058018.5180003300x2100x2980
    WC67Y/K-300/400030004000320040025058018.5220004060x2040x3330
    WC67Y/K-400/400040004000318040032063030300004060x2220x3630
    WC67Y/K-400/6000400060004700400320630304500060602x2203x980
    WC67Y/K-500/60005000600046005003207030550006080x2760x4000
    WC67Y/K-800/600080006000460050040090037720006100x3250x4300

    Details:

    Servo Motor Press Brakes Bending Machine 4X3200MM Carbon Steel TP10SServo Motor Press Brakes Bending Machine 4X3200MM Carbon Steel TP10SServo Motor Press Brakes Bending Machine 4X3200MM Carbon Steel TP10SServo Motor Press Brakes Bending Machine 4X3200MM Carbon Steel TP10SServo Motor Press Brakes Bending Machine 4X3200MM Carbon Steel TP10SServo Motor Press Brakes Bending Machine 4X3200MM Carbon Steel TP10SServo Motor Press Brakes Bending Machine 4X3200MM Carbon Steel TP10S


    Pre-sales.
    * Project design, performance introduction, technical agreement, contract signing, packaging
    * Inquiry and consulting support.
    * Sample testing support.


    In-sales.
    * We will provide you with the latest progress in the product assembly, packaging and transportation.


    After-sale.
    * We will provide free accessories for the damage to non - human parts.
    * Training how to install the machine, training how to use the machine with video and so on
    * And our technical staff can go abroad to provide technical guidance.
