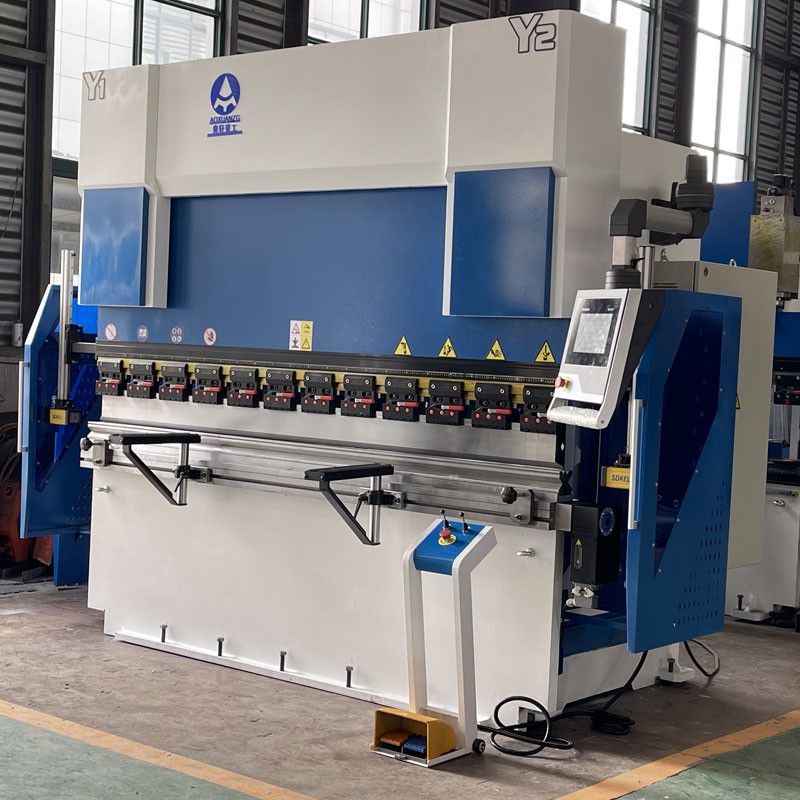

Delem System 4+1+2 Axis Hydraulic Press Brake CNC Bending Machine With DA53T

WC67Y Hydraulic Press brake
1. Steel-welded construction, vibration to eliminate stress, with high strength and good rigidity.
2. Hydualic top-drive, steadiness and reliability. Mechanical stop, steel torsion bar maintain synchronization, high precision.
3. Motorize-adjustinf device of backgauge and rams stroke, fine adjusting by handwheel, numberical display.

Characteristics
1. Adopt integrated hydraulic control system, more reliable and easy for maintenance. main hydraulic valves from Bosch (Germany)
2. All pipes, flange and joint with vibrations proof and leakage proof design and setting .
3. Overload overflow protection is outfitted to hydraulic system,which can assure no leakage,and the oil level can be read or seen directly.
4. The hydraulic system is made in compliance with current regulations.

ELECTRICAL SYSTEM
1. Electrical Cabinet under the international Standard, safe and reliable, strong anti interference capability.
2. Protective fence to ensure the operation safety. Have a movable single-hand pedal switch,easy to operate.

SYNCHRO CONTROL SYSTEM
1. Patented system for exact parallelism and a high repeat accuracy
2. The worktable adopts the particular design,reducing the crowning distortion amount of lower tool effectively.
3. Adopt steel torsion bar synchro system,simple in structure and high in accuracy,ensures the parallelism between beams is used for the synchronism.

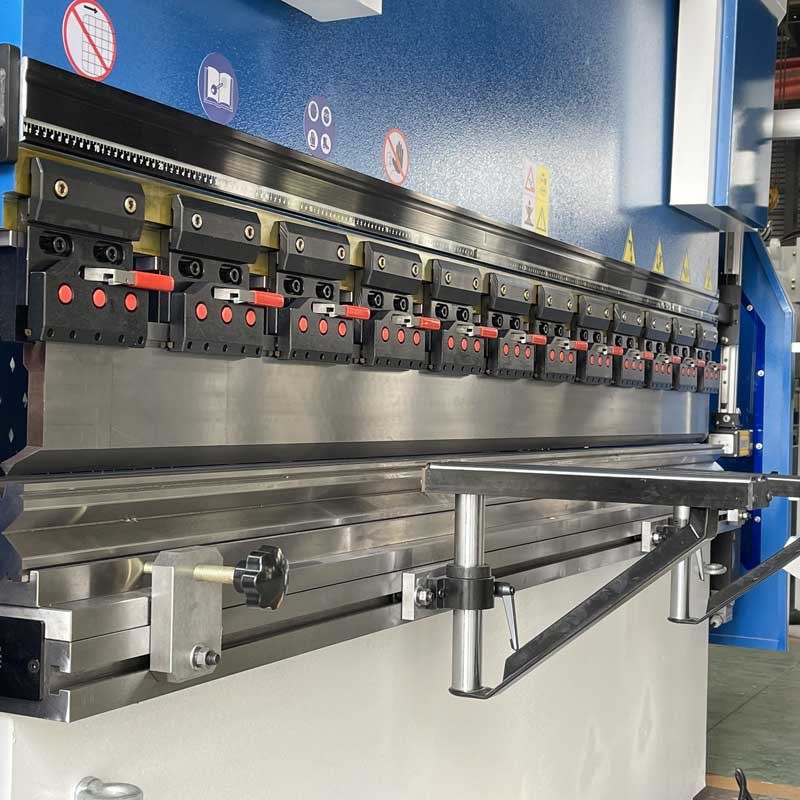

RAM AND DIES
1. The equipped difference standard Dies according machine’s model, special non-standard mold is available under client's
requirement according to real workpiece situation.
2. Upper and buttom die can be sectioned according to customer’s requirement.
3. The Machine By CNC Controller or NC Control With the point of programming, can calculate thebending angle bending depth.

Technical parameter:

Main Configuration
Using HIWIN ball screw and linear guide, the accuracy is 0.01mm;
The front support bracket can be adjusted up and down;
German Hawe proportional valve;
Italian GIVI grating ruler;
German Bosch Rexroth hydraulic valve block;
German EMB oil pipe joint;
German Siemens main motor;
Schneider Electric of France;
Laser protection device;
Hydraulic and electrical overload protection;
Optional mechanical compensation device;
Double V mold (material: 42CrMo).

Packing Detail:
☂ Each Press Brake with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
✈ We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
Delivery Detail :
☀ Shipped in 30 days after payment.

1. Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
2. After tested, the machines will be wrapped with plastic sheet ,
3,a,Small size : carefully packed in wooden cases ;
b,Big size: machine will be securely wired into the container by steel wire.
