    High Speed Pneumatic Punching Machine Hardware Workpiece Fully Automatic Production Line Metal Parts

    Ask Lasest Price
    Brand Name : Aoxuanzg
    Model Number : JF21-25T
    Certification : CE,ISO
    Price : $14000-$25000/Set
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 500 sets per year
    Delivery Time : 50-60 days
    • Product Details
    • Company Profile

    High Speed Pneumatic Punching Machine Hardware Workpiece Fully Automatic Production Line Metal Parts

    High Speed Pneumatic Punching Machine Hardware Workpiece Fully Automatic Production Line Metal Parts


    Applications
    1. Auto parts: automobile body covering parts, braking, fuel tanks, chassis, axle case, bumper
    2. Household appliance: washing machine, TV, refrigerator, air conditioning, rice cooker and other parts
    3. Kitchenware: sink, tea set and Other kinds of containers.


    High Speed Pneumatic Punching Machine Hardware Workpiece Fully Automatic Production Line Metal Parts


    Technical Parameters:

    ITEMUNITJH21-25JH21-45JH21-60JH21-80JH21-125JH21-160JH21-200JH21-250JH21-315JH21-400
    Nominal CapacityKN250450600800125016002000250031504000
    Slide Strokemm80120140160180200220220220250
    Slide StrokesFixedTimes/min100807060504545303030
    Variable(optional)Times/min60-10050-8045-7040-6035-5030-4525-4520-3020-3020-30
    Max. Die Shut Heightmm250270300320350400450500500550
    Die Shut Height Adjustmentmm5060708090100110120120120
    Throat Depthmm210225270310350400430450450490
    Distance Between Columnsmm4505155606106707369109809801050
    Slide Bottom SizeF-Bmm250340400460520580650700700750
    L-Rmm3604104805406207008809509501020
    Shank Hole SizeDiametermm40505050707070707070
    Depthmm6560706590100100130130130
    Bolster SizeF-Bmm400440520600680760840880880950
    L-Rmm720825930950110011751390150015401700
    Thicknessmm80110130140155165180190190210
    Bed Opening Hole Diametermm150150150180200220250270270290
    Overall DimensionsF-Bmm1496158515401765204023052600266027202850
    L-Rmm945107512001200132014201540164016801750
    Heightmm2120239125702725303532153800386538654150
    Motor PowerKW35.55.57.5111518.5223037
    Weight(approximate)kg245035505150645095501360019200232002660031600

    Details:

    Straightening servo feeding machine

    High Speed Pneumatic Punching Machine Hardware Workpiece Fully Automatic Production Line Metal Parts

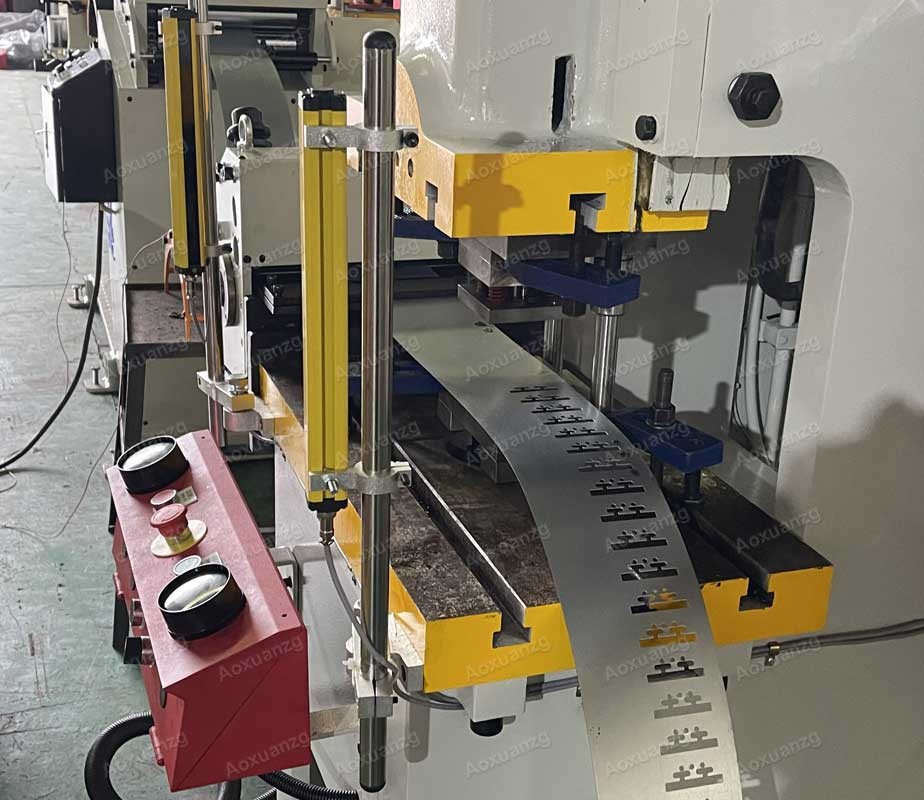

    Pneumatic Punching Machine

    Main Features:
    1. High Rigidity
    High rigidity, high-precision frame, with welded steel board and heat treated, eliminate inner tension of press.
    2. Balance Center Of Gravity
    The transmission center is in accordance with the center of the whole machine, ensure the accurate and stability in pressing.
    3. Safe and Reliable Operation High-sensitive clutch/braking added international top double electromagnetic valve and overloading protection device, can guarantee the accuracy and safety for slid board running and stopping.
    4. High-Precision
    The abrasive sections of crankshaft, gears, gearshaft are treated by hardening heat treatment and followedmilling processing, with high abrasion resistant and balance performance, as well as stable performances. Ensure quality and using life of Punch.
    5. Automation Processing
    Can equip all automatic feeders for automation production, reduce the cost, promote efficiency.

    High Speed Pneumatic Punching Machine Hardware Workpiece Fully Automatic Production Line Metal Parts


    High Speed Pneumatic Punching Machine Hardware Workpiece Fully Automatic Production Line Metal PartsHigh Speed Pneumatic Punching Machine Hardware Workpiece Fully Automatic Production Line Metal PartsHigh Speed Pneumatic Punching Machine Hardware Workpiece Fully Automatic Production Line Metal PartsHigh Speed Pneumatic Punching Machine Hardware Workpiece Fully Automatic Production Line Metal PartsHigh Speed Pneumatic Punching Machine Hardware Workpiece Fully Automatic Production Line Metal PartsHigh Speed Pneumatic Punching Machine Hardware Workpiece Fully Automatic Production Line Metal PartsHigh Speed Pneumatic Punching Machine Hardware Workpiece Fully Automatic Production Line Metal Parts

    Packing&Shipping


    Packing Detail:

    ☂ Each Punchinga machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
    ✈ We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.

    High Speed Pneumatic Punching Machine Hardware Workpiece Fully Automatic Production Line Metal Parts

    Delivery Detail :
    ☀ Shipped in 25 days after payment.


    Pre-sales.
    * Project design, performance introduction, technical agreement, contract signing, packaging
    * Inquiry and consulting support.
    * Sample testing support.

    In-sales.
    * We will provide you with the latest progress in the product assembly, packaging and transportation.

    After-sale.
    * We will provide free accessories for the damage to non - human parts.
    * Training how to install the machine, training how to use the machine with video and so on
    * And our technical staff can go abroad to provide technical guidance.
