Brand Name : | AOXUANZG |
Model Number : | WE67K-125T/2500 |
Certification : | CE |
Price : | $23859-$27978/unit |
Payment Terms : | L/C, T/T, Western Union, D/P, D/A |
Supply Ability : | 500sets/Year |
Delivery Time : | 20-30 days |
Main Features:
● CNC Series are among the highest rated machines which will help
you increase your productivity and keep costs at minimum level
with its user friendly CNC controller and low cost hydraulic
maintenance.
● New CNC is exactly what you need for your production where
complicated, sensitive, single or multiple bends on high speed are
paramount.
● High quality and repetitive bending is obtained by using
synchronized cylinders and valves.
● Automatic utilisation of all axes on startup.
● Rigid upper beam runs on 8-point bearings with bending precision
of 0,01 mm.
● Well-known top and bottom tool brands are long lasting hardened
and provide precise bending.
● All Aoxuan machines are designed using SOLID WORKS 3D programming
and made with enhanced ST44-1 quality steel using the latest
technology.
The standard cofiguration:
High precision backguage
Germany Bosch Rexroth safety valve
Germany EMB Hose connector
Schneider Electric Syste
RV reducer motor working table compensation (Optional)
Quick mold clamping device

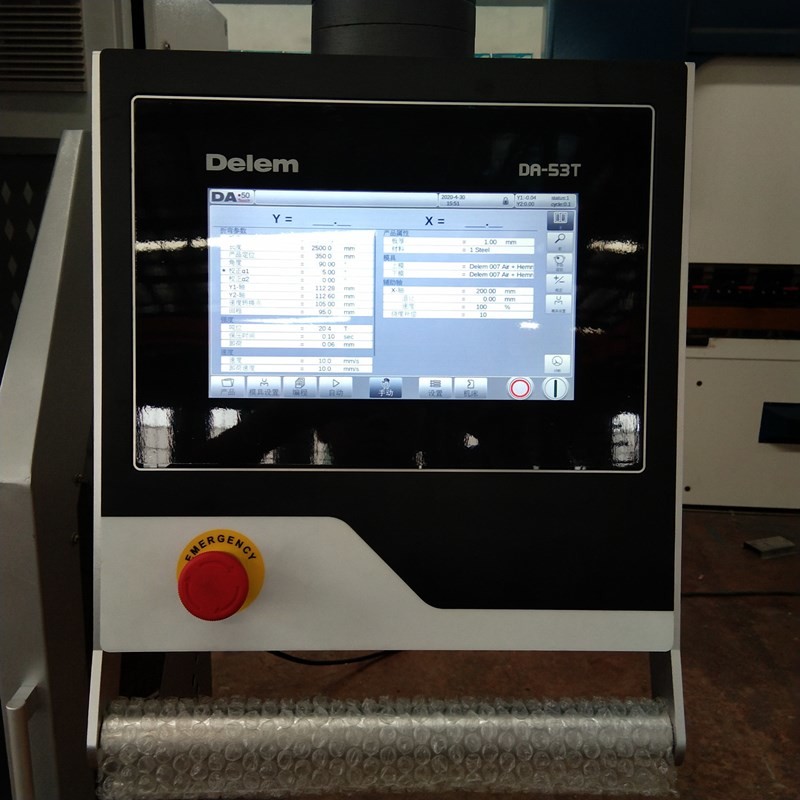

DA53T Controller System:
Details:
Technical Parameters:
Model | Nominal pressure (KN) | Worktable Length (mm) | Columns Distance (mm) | Throat | Slider | Max | Main | Dimension |
Depth | Stroke | Open | motor | L x W x H | ||||
(mm) | (mm) | height | Power | (mm) | ||||
(mm) | (KW) | |||||||
WC67Y/K-30/1600 | 300 | 1600 | 1280 | 200 | 80 | 190 | 3 | 1700×900×1650 |
WC67Y/K-30/2000 | 300 | 2000 | 1280 | 200 | 80 | 190 | 3 | 1700×900×1650 |
WC67Y/K-40/2500 | 400 | 2500 | 1900 | 280 | 100 | 320 | 5.5 | 2600×1100×1900 |
WC67Y/K-63/2500 | 630 | 2500 | 1900 | 350 | 170 | 380 | 5.5 | 3100×1450×2050 |
WC67Y/K-80/3200 | 800 | 3200 | 2700 | 350 | 170 | 380 | 7.5 | 3500×1550×2100 |
WC67Y/K-100/3200 | 1000 | 3200 | 2700 | 400 | 200 | 420 | 7.5 | 3500×1580×2400 |
WC67Y/K-160/3200 | 1600 | 3200 | 2700 | 400 | 200 | 420 | 11 | 3500×1650×2550 |
WC67Y/K-200/3200 | 2000 | 3200 | 2700 | 400 | 200 | 420 | 15 | 3500×1680×2550 |
WC67Y/K-250/3200 | 2500 | 3200 | 2700 | 400 | 200 | 420 | 15 | 3500×1700×2600 |
WC67Y/K-320/3200 | 3200 | 3200 | 2700 | 400 | 200 | 420 | 22 | 3500×1800×2730 |
WC67Y/K-400/4000 | 4000 | 4000 | 3500 | 500 | 320 | 600 | 30 | 4300×2450×3500 |
WC67Y/K-500/5000 | 5000 | 5000 | 3900 | 500 | 320 | 600 | 37 | 5400×2810×4300 |
WC67Y/K-500/6000 | 5000 | 6000 | 4900 | 500 | 320 | 600 | 37 | 6500×2810×4300 |
WC67Y/K-500/7000 | 5000 | 7000 | 4900 | 500 | 320 | 600 | 37 | 7500×2810×4900 |
WC67Y/K-600/5000 | 6000 | 5000 | 3900 | 500 | 320 | 600 | 45 | 5500×2910×4900 |
WC67Y/K-600/6000 | 6000 | 6000 | 4900 | 500 | 320 | 600 | 45 | 6500×2910×5100 |
WC67Y/K-600/7000 | 6000 | 7000 | 5900 | 500 | 320 | 600 | 45 | 7500×2910×5200 |
WC67Y/K-800/6000 | 8000 | 6000 | 4900 | 600 | 400 | 600 | 55 | 6500×2750 ×5300 |
WC67Y/K-800/8000 | 8000 | 8000 | 6900 | 600 | 400 | 600 | 55 | 8500×2750×5900 |
WC67Y/K-1000/6000 | 10000 | 6000 | 4900 | 600 | 400 | 600 | 2×37 | 6500×2800×5600 |
WC67Y/K-1000/8000 | 10000 | 8000 | 6900 | 600 | 400 | 600 | 2×37 | 8500×2800×6100 |
WC67Y/K-1000/10000 | 10000 | 10000 | 8000 | 600 | 400 | 600 | 2×37 | 10500×2800×5850 |
WC67Y/K-1200/6000 | 12000 | 6000 | 4900 | 600 | 400 | 800 | 2×37 | 6500×3100×5850 |
WC67Y/K-1200/8000 | 12000 | 8000 | 6900 | 600 | 400 | 800 | 2×37 | 8500×3100×7150 |
Certifications:
Packing Detail:
Each Hydraulic Press Brake with plastic film package first, then
placed in a wooden case, wooden case with a foam filling.
We loaded the truck with heavy trucks for loading the cargo to the
harbor terminal.At the dock we pack the goods in containers
and ship them abroad.
Delivery Detail:
Shipped in 30 days after payment
Our Service
After-sales.
* We will provide free accessories for the damage to non - human
parts. * Training how to install the machine, training how
to use the machine with video and so on * And our technical staff
can go abroad to provide technical guidance.
Our Company:
Our workshop:
Customer & EXPO:
FAQ:
1. Are you the manufacture?Can we visit your factory? We are
manufacturer and we are located in Anhui,China.And we have our
own design team for products design. And welcome you visit our
factory and check our machine qualtiy on spot,any question will
be solved on spot at first time.
2.What's your main product and what is your main foreign market?
Our main products are press brake,shears machine,press,cut
ting machine,locking machine ,auto duct line and related products.
Our main foreign market are Asia, North America, Europe, Afr
ica.
3. What are the advantages of your machines?And how can i believe
the quality of your product? The main configuration is to im
port quality products, and Professional product quality inspection
teamensure machine in top-quality, precision and life. For exam
ple,Germany Bosch-Rexroth Valve group,Germany Siemens Main
Motor,Schneider Electrics system and so on. Once tested as q
ualified .our machine would be sent out.So The quality of our
product is stable and reliable.
4. And are you able to update the production process Information in
time after placing our order? After confirming your order ,we
would keep you updated of production details of emails and photos.
5.Are you provide product metal parts and provide us technical
guidance? Wearing parts,Disassembly tool(free) are what we cou
ld provide.And we can give you technical guidance.Our technical
staff can go abroad to provide you with technical guidance.
6. How long is your warranty? 13 months free warranty, life-long
maintenance. 9.Do you accept customer Logo and customized ?
we accept kinds of customized ,including logo and machine .
