Brand Name : | Aoxuanzg |
Model Number : | WC67K-125T3200 |
Certification : | CE,ISO |
Price : | $13700-$14000/unit |
Payment Terms : | L/C, T/T, Western Union, MoneyGram |
Supply Ability : | 500 sets per year |
Delivery Time : | 20-30 working days |
High Quality 125 Ton Steel Plate Bending Machine Best Price Cnc System 125T3200 Hydraulic Press Brake With AMADA
Main features :
1. Totally EU streamlined design. Monobloc by welding robots &
apparatus and stress relief process by annealing treatment.
2. Hydraulic top-drive, steadiness and reliability, mechanical
stop, steel torsion bar to maintain synchronization, high
precision.
3. Adopt integrated hydraulic system, more reliable and easy for
maintenance. and the hydraulic system from Bosch Rexroth, Germany.
4. Travel limit protection, full machine guarding with safety
interlocker.
5. Mechanical synchronous mechanism and the complex compensation
are designed so as to raise the workpieces precision.
6. The stroke and distance of the back gauge is adjusted by the
motor.
7. Inch, single mode being designed for the machine and reversing
and maintain time can be controlled by the time relays
8. Safe fence and the electric interlocker have been designed for
the machine to ensure the operation safety.

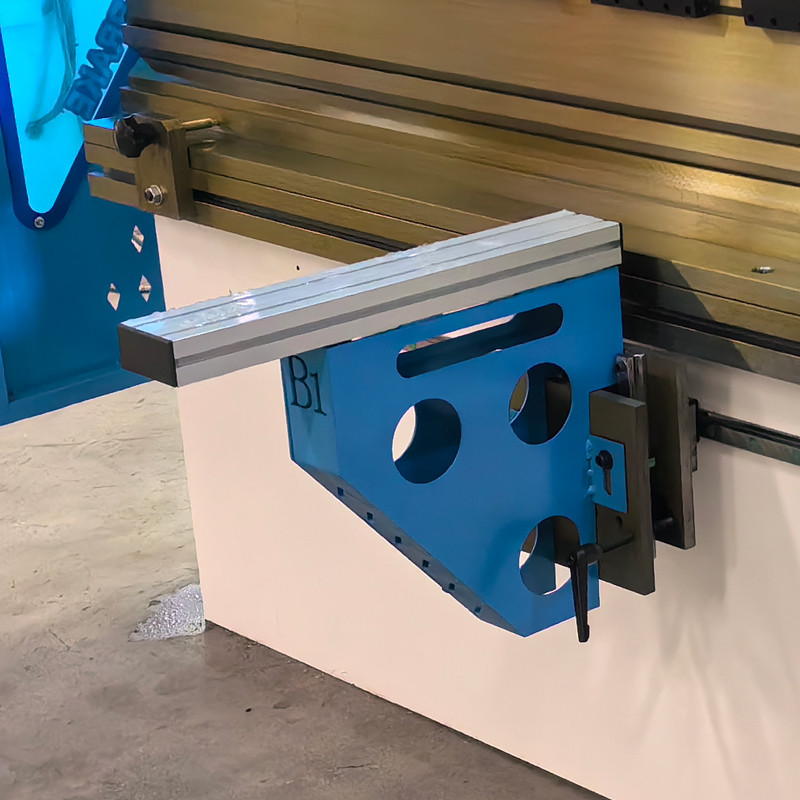

9. Standard punches and dies. Front arm material support. Foot
pedal with emergency stop.
10. Control system: Estun NC E21, CNC DELEM DA41, DA52, DA66T.
Technical parameter:
Model | Pressure | Worktable length | Distance between columns | Depth of throat | Stroke | Max height between worktable and ram | Main motor | Weight | Dimension(LxWxH) |
Units | kn | mm | mm | mm | mm | mm | kw | mm | mm |
WC67Y/K-40/2500 | 400 | 2500 | 1925 | 220 | 80 | 300 | 4 | 3000 | 2650x1100x1950 |
WC67Y/K-50/2500 | 500 | 2500 | 2015 | 220 | 100 | 340 | 4 | 3750 | 2650x1250x2100 |
WC67Y/K-63/2500 | 630 | 2500 | 2015 | 250 | 100 | 340 | 5.5 | 4300 | 2650x1300x2200 |
WC67Y/K-80/2500 | 800 | 2500 | 2010 | 250 | 120 | 380 | 5.5 | 5200 | 2560x1350x2250 |
WC67Y/K-80/3200 | 800 | 3200 | 2510 | 250 | 120 | 380 | 5.5 | 6000 | 3260x1350x2280 |
WC67Y/K-100/2500 | 1000 | 2500 | 2050 | 320 | 150 | 420 | 7.5 | 6700 | 2550x1360x2270 |
WC67Y/K-100/3200 | 1000 | 3200 | 2550 | 320 | 150 | 420 | 7.5 | 7200 | 3260x1365x2520 |
WC67Y/K-100/4000 | 1000 | 4000 | 3050 | 320 | 150 | 420 | 7.5 | 8500 | 4060x1365x2720 |
WC67Y/K-125/3200 | 1250 | 3200 | 2550 | 320 | 150 | 420 | 7.5 | 7800 | 3260x1465x2600 |
WC67Y/K-125/4000 | 1250 | 4000 | 3050 | 320 | 150 | 420 | 7.5 | 9000 | 4060x1460x2800 |
WC67Y/K-160/3200 | 1600 | 3200 | 2590 | 320 | 200 | 475 | 11 | 10500 | 3260x1580x2775 |
WC67Y/K-160/4000 | 1600 | 4000 | 3040 | 320 | 200 | 475 | 11 | 12500 | 4060x1580x2925 |
WC67Y/K-160/6000 | 1600 | 6000 | 4800 | 320 | 200 | 480 | 11 | 19500 | 6060x1580x3480 |
WC67Y/K-200/3200 | 2000 | 3200 | 2580 | 320 | 200 | 475 | 18.5 | 13200 | 3260x1650x2800 |
WC67Y/K-250/4000 | 2500 | 4000 | 3130 | 400 | 250 | 530 | 18.5 | 19000 | 4060x1840x3150 |
WC67Y/K-250/5000 | 2500 | 5000 | 3930 | 400 | 250 | 530 | 18.5 | 24000 | 5060x1840x3450 |
WC67Y/K-300/3200 | 3000 | 3200 | 2530 | 400 | 250 | 580 | 18.5 | 18000 | 3300x2100x2980 |
WC67Y/K-300/4000 | 3000 | 4000 | 3200 | 400 | 250 | 580 | 18.5 | 22000 | 4060x2040x3330 |
WC67Y/K-400/4000 | 4000 | 4000 | 3180 | 400 | 320 | 630 | 30 | 30000 | 4060x2220x3630 |
WC67Y/K-400/6000 | 4000 | 6000 | 4700 | 400 | 320 | 630 | 30 | 45000 | 60602x2203x980 |
WC67Y/K-500/6000 | 5000 | 6000 | 4600 | 500 | 320 | 70 | 30 | 55000 | 6080x2760x4000 |
WC67Y/K-800/6000 | 8000 | 6000 | 4600 | 500 | 400 | 900 | 37 | 72000 | 6100x3250x4300 |
Standard configuration
Main configuration list | ||
1 | Control system | E21 E300 DA41 TP10S CT6 CT8 CT12 DA52S DA53T DA58T DA66T DA69T and so on |
2 | Electrical components | Schneider Electrical from French |
3 | Main Motor | Siemens from Germany Brand |
4 | BackGauge & RAM Drive | Inverter from Taiwan delta |
5 | Travel switch | Schneider Electrical from French |
6 | Foot switch | KACON from South Korea |
7 | Hydraulic System | Bosch-Rexroth form Germany |
8 | Hydraulic Pump | SUUNY or SAEMP form Taiwan |
9 | Sealing Element | PARKER from U.S.A Brand |
10 | Tubing connector | EMB form Germany Brand |
11 | Ball screw/ Polished rod | HIWIN from TaiWan Brand |

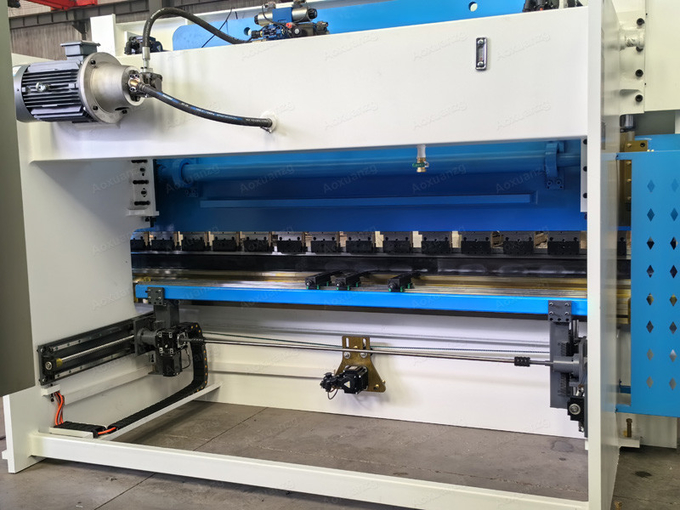

Details:
Packing:
1. Before packaged, the machines will be tested strictly to
guarantee the stability and high accuracy.
2. After tested, the machines will be wrapped with plastic sheet ,
3,a,Small size : carefully packed in wooden cases ;
b,Big size: machine will be securely wired into the container by
steel wire.
Packing Detail:
☂ Each Press brake with plastic film package first, then placed in
a wooden case, wooden case with a foam filling.
✈ We loaded the truck with heavy trucks for loading the cargo to
the harbor terminal.At the dock we pack the goods in containers and
ship them abroad.
Delivery Detail :
☀ Shipped in 30 days after payment.
Pre-sales.
* Project design, performance introduction, technical agreement,
contract signing, packaging
* Inquiry and consulting support.
* Sample testing support.
In-sales.
* We will provide you with the latest progress in the product
assembly, packaging and transportation.
After-sale.
* We will provide free accessories for the damage to non - human
parts.
* Training how to install the machine, training how to use the
machine with video and so on
* And our technical staff can go abroad to provide technical
guidance.
If you are interested, please contact me ^-^
![]() |
