    Delem DA53T Fully Computer Controlled Hydraulic Press Brake 220t 3200mm Press Bending Machine Manufacturing

    Ask Lasest Price
    Brand Name : AOXUANZG
    Model Number : WE67K-220T/3200
    Certification : CE
    Price : $27000
    Payment Terms : L/C, T/T, Western Union, D/P, D/A
    Supply Ability : 500 sets/Year
    Delivery Time : 20-30 days
    • Product Details
    • Company Profile

    Delem DA53T Fully Computer Controlled Hydraulic Press Brake 220t 3200mm Press Bending Machine Manufacturing

    Delem DA53T Fully Computer Controlled Hydraulic Press Brake 220t 3200mm Press Bending Machine Manufacturing

    CNC ELECTRO-HYDRAULIC SYNCHRONOUS CNC PRESS BRAKE
    CNC series of press brakes has been designed and crafted with an ethos of heavy duty quality. The range also features the multi-axis CNC controller, delivering the ability to handle complex, multi-bend operations quickly and easily. Touch screen control is quick and easy thanks to the user-friendly interface. There is also the option of preparing the production off line on a PC with the software provided, enabling feasibility checks prior to production


    Delem DA53T Fully Computer Controlled Hydraulic Press Brake 220t 3200mm Press Bending Machine Manufacturing

    1. High bending precision,fast working speed, and efficient,operational safety,performance stably.
    2. Good antiknock frame(welded-steel plate construction),whole frame is been tempering,reduce modification,using large-scale CNC milling machine,process in one time,insure high-precision.
    3. Using international brand parts and cnc.
    4. Visual operating system,easy operation,convenient,multi-functions and practical.
    5. All parts are produced by cnc produce center,according to standard drawing.
    6. High executive force,high standard and high professional machine assembled team.
    7. Fashion outlook,delicate,and beautiful,machines are compact design,small floor space,easy operation.
    8. Providing comprehensive bending program for all press brake,shearing machine user.
    9. Replaceable worktable and the upper and lower mound,no welding,forging and precision grinding.
    10. The similarity of images and shipping machine can reach 99.5%.13. The similarity of images and shipping machine can reach 99.5%.
    11. Thickening the slider and the vertical plate, to ensure the stability of the machine tool and reduce the elasticity.
    12. Rational layout of the oil pipeline design, to prevent the oil temperature rise quickly.
    13. Deliver goods on time


    Delem DA53T Fully Computer Controlled Hydraulic Press Brake 220t 3200mm Press Bending Machine Manufacturing


    Technical Parameters:

    ModelNominal pressure (KN)Worktable Length (mm)Columns Distance (mm)ThroatSliderMaxMainDimension
    DepthStrokeOpenmotorL x W x H
    (mm)(mm)heightPower(mm)
    (mm)(KW)
    WC67Y/K-30/1600300160012802008019031700×900×1650
    WC67Y/K-30/2000300200012802008019031700×900×1650
    WC67Y/K-40/2500400250019002801003205.52600×1100×1900
    WC67Y/K-63/2500630250019003501703805.53100×1450×2050
    WC67Y/K-80/3200800320027003501703807.53500×1550×2100
    WC67Y/K-100/32001000320027004002004207.53500×1580×2400
    WC67Y/K-160/3200160032002700400200420113500×1650×2550
    WC67Y/K-200/3200200032002700400200420153500×1680×2550
    WC67Y/K-250/3200250032002700400200420153500×1700×2600
    WC67Y/K-320/3200320032002700400200420223500×1800×2730
    WC67Y/K-400/4000400040003500500320600304300×2450×3500
    WC67Y/K-500/5000500050003900500320600375400×2810×4300
    WC67Y/K-500/6000500060004900500320600376500×2810×4300


    Main Configuration
    Using HIWIN ball screw and linear guide, the accuracy is 0.01mm;
    The front support bracket can be adjusted up and down;
    German Hawe proportional valve;
    Italian GIVI grating ruler;
    German Bosch Rexroth hydraulic valve block;
    German EMB oil pipe joint;
    German Siemens main motor;
    Schneider Electric of France;
    Laser protection device;
    Hydraulic and electrical overload protection;
    Optional mechanical compensation device;
    Double V mold (material: 42CrMo).


    Delem DA53T Fully Computer Controlled Hydraulic Press Brake 220t 3200mm Press Bending Machine Manufacturing

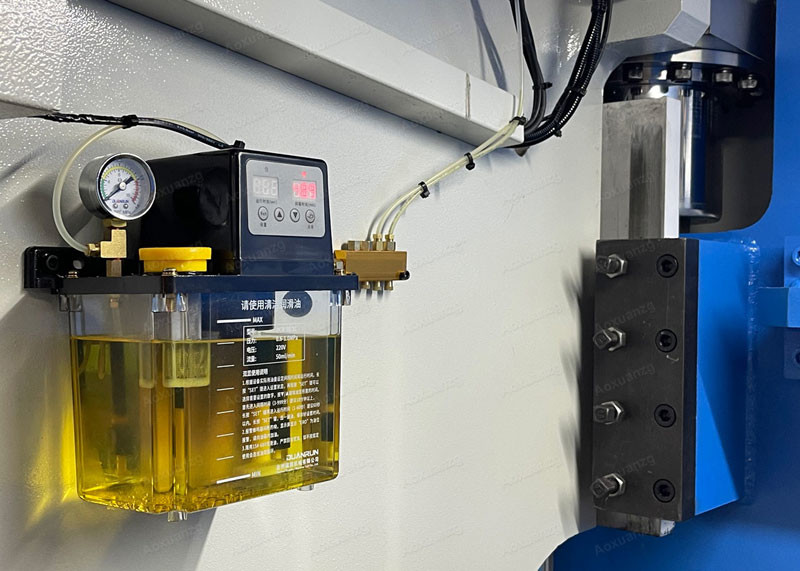

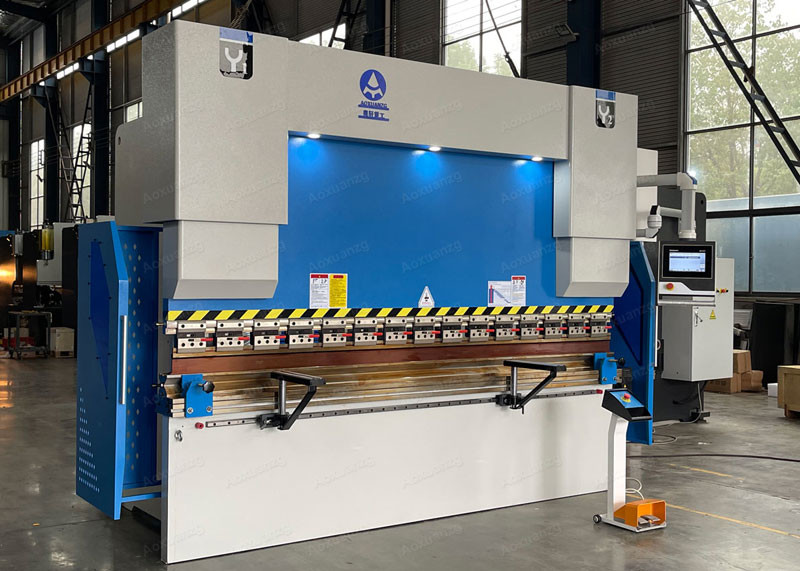

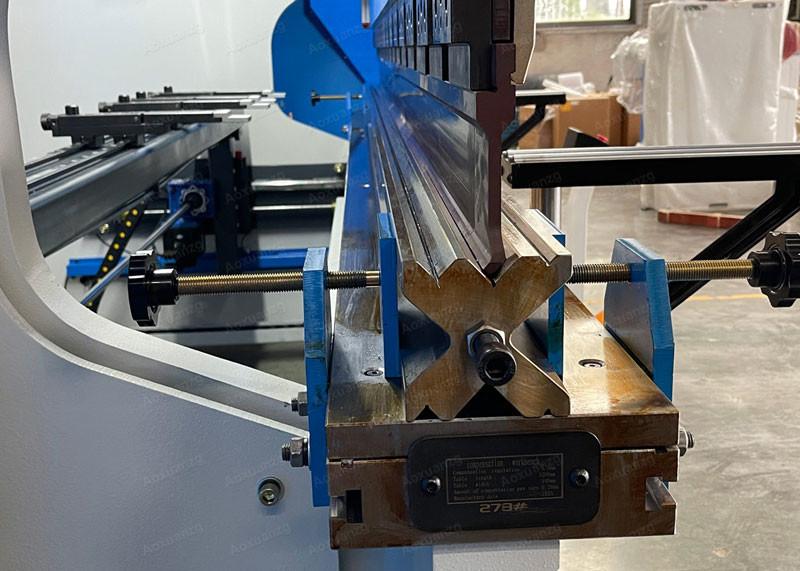

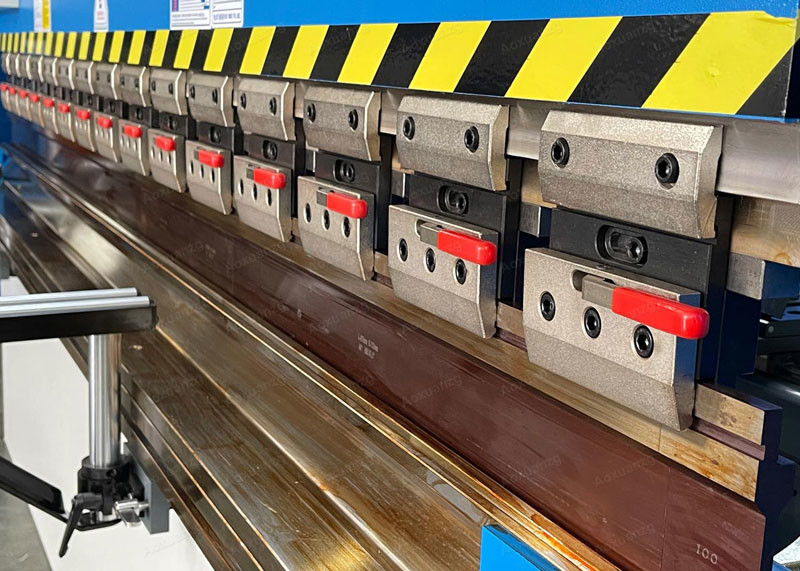

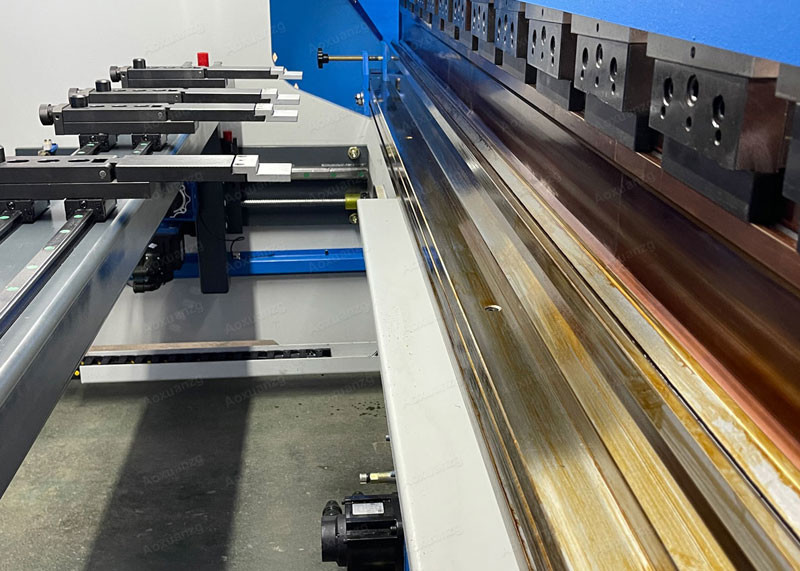

    Details:

    Delem DA53T Fully Computer Controlled Hydraulic Press Brake 220t 3200mm Press Bending Machine ManufacturingDelem DA53T Fully Computer Controlled Hydraulic Press Brake 220t 3200mm Press Bending Machine ManufacturingDelem DA53T Fully Computer Controlled Hydraulic Press Brake 220t 3200mm Press Bending Machine ManufacturingDelem DA53T Fully Computer Controlled Hydraulic Press Brake 220t 3200mm Press Bending Machine ManufacturingDelem DA53T Fully Computer Controlled Hydraulic Press Brake 220t 3200mm Press Bending Machine ManufacturingDelem DA53T Fully Computer Controlled Hydraulic Press Brake 220t 3200mm Press Bending Machine ManufacturingDelem DA53T Fully Computer Controlled Hydraulic Press Brake 220t 3200mm Press Bending Machine ManufacturingDelem DA53T Fully Computer Controlled Hydraulic Press Brake 220t 3200mm Press Bending Machine ManufacturingDelem DA53T Fully Computer Controlled Hydraulic Press Brake 220t 3200mm Press Bending Machine ManufacturingDelem DA53T Fully Computer Controlled Hydraulic Press Brake 220t 3200mm Press Bending Machine Manufacturing

    Packing Detail:
    Each Hydraulic Press Brake with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
    We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers
    and ship them abroad.

    Delivery Detail:
    Shipped in 30 days after payment
    Delem DA53T Fully Computer Controlled Hydraulic Press Brake 220t 3200mm Press Bending Machine Manufacturing
    Our workshop:


    Delem DA53T Fully Computer Controlled Hydraulic Press Brake 220t 3200mm Press Bending Machine Manufacturing

    If you are interested, please contact me ^-^
